Toggletip

Toggletips display and hide additional information upon the click of a UI trigger element and can contain interactive elements.

Accessibility testing status

For every latest release, Carbon runs tests on all components to meet the accessibility requirements. These different statuses report the work that Carbon has done in the back end. These tests appear only when the components are stable.

Latest version: ^1.51.0 | Framework: React (@carbon/react)

ComponentAccessibility testStatusLink to source code
ToggletipTest(s) that ensure the initial render state of a component is accessible.
Passes all automated tests with no reported accessibility violations.
GitHub link
Tests that ensure additional states of the component are accessible. This could be interactive states of a component or its multiple variants.
Automated or manual testing has been temporarily deferred.
Tests that ensure focus is properly managed, and all interactive functions of a component have a proper keyboard-accessible equivalent.
Passes all automated tests with no reported accessibility violations.
This manual testing ensures that the visual information on the screen is properly conveyed and read correctly by screen readers such as JAWS, VoiceOver, and NVDA.
A human has manually tested this component, e.g. screen reader testing.

What Carbon provides

Carbon already incorporates accessibility into the toggletip component. Designers only need to indicate the toggletip’s content.

Keyboard interactions

Toggletips use an information icon button for the trigger. These buttons are in the tab order and are activated by pressing Enter or Space. The activation toggles the tip open and closed, and focus remains on the trigger.

When the toggletip contains interactive elements, pressingTab will move focus to the first component in the toggletip. When the toggletip only has non-interactive text, or when the focus is on the last component in the toggletip, pressing Tab will close the toggletip and move focus to the next tab stop on the page. Pressing Esc also closes an open toggletip and returns focus to the trigger if the focus is inside the tooltip.

The information icon and tooltip elmements are in the tab order

The information icon button that triggers the toggletip is in the page tab order, as are interactive elements inside an open toggletip.

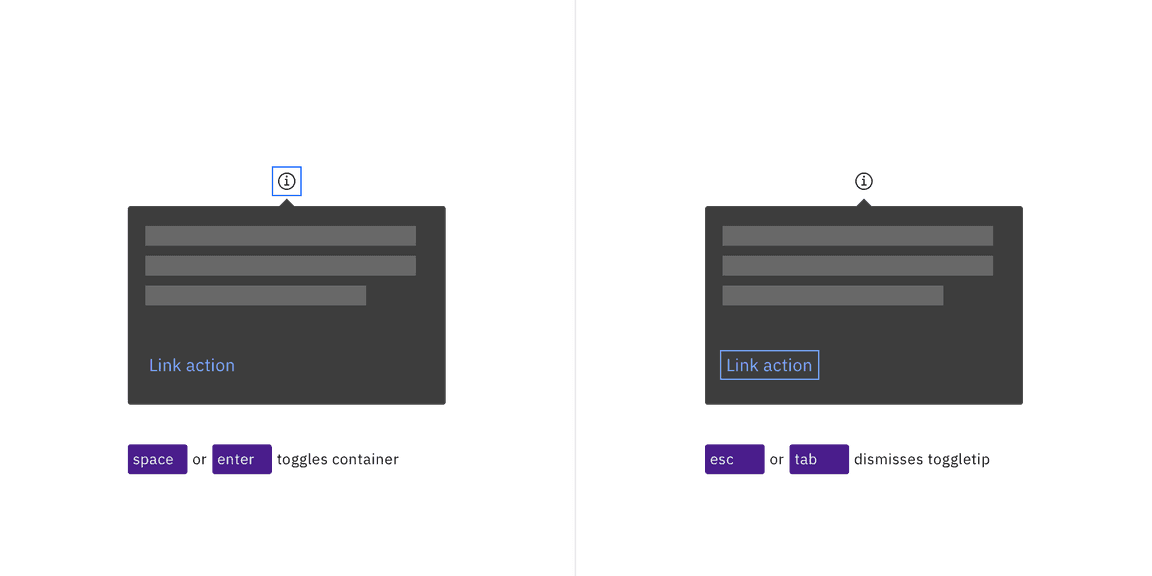

Enter or Space open a toggletip, Esc dismisses

Toggletips appear when the information icon button is activated and disappear by activating the icon again, pressing Esc, or tabbing away from the toggletip.

Development considerations

Keep these considerations in mind if you are modifying Carbon or creating a custom component.

  • The icon button has aria-label="Show information".
  • The button uses aria-expanded to set toggletip visibility and aria-controls to handle navigation to the content.
