The following page documents visual specifications such as color, typography, structure, and sizes.

Color
Typography
Structure
Sizes

Color

Default color

State	Element	Property	Color token
Enabled	Text	text color	$text-primary
	Button	border	$border-inverse
		background	transparent
Hover	Text	text color	$text-inverse
	Button	border	$border-inverse
		background	$background-inverse
Focus	Button	border	$focus

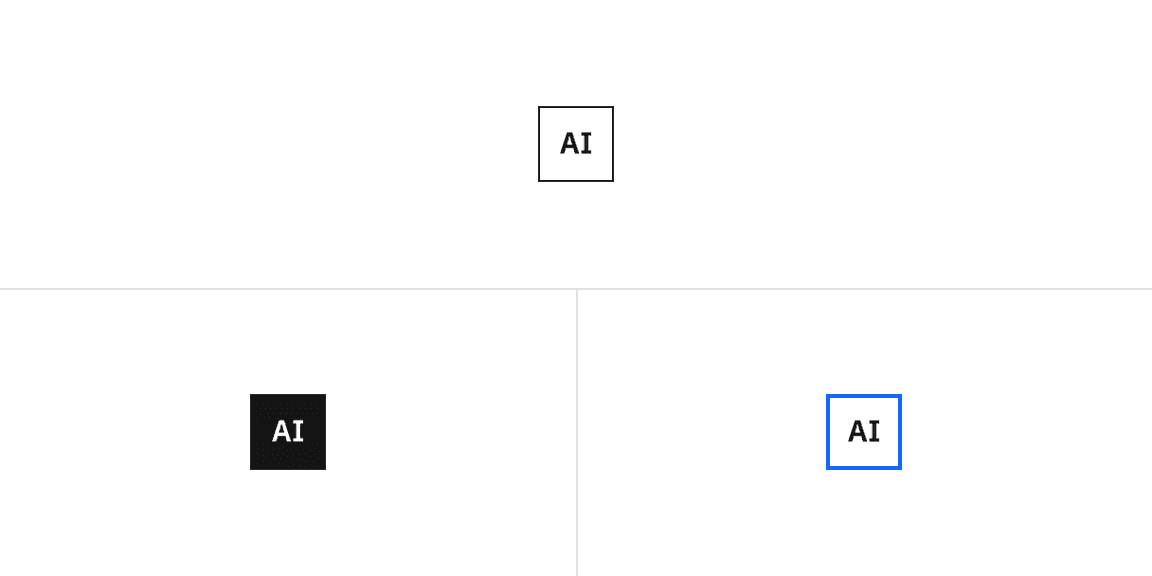

Examples of default AI label states

Inline color

State	Element	Property	Color token
Enabled	Text	text color	$text-primary
	Dot	fill	$icon-primary
	Button	background	transparent
Hover	Text	text color	$text-secondary
	Button	border	$border-inverse
		background	transparent
Focus	Button	border	$focus

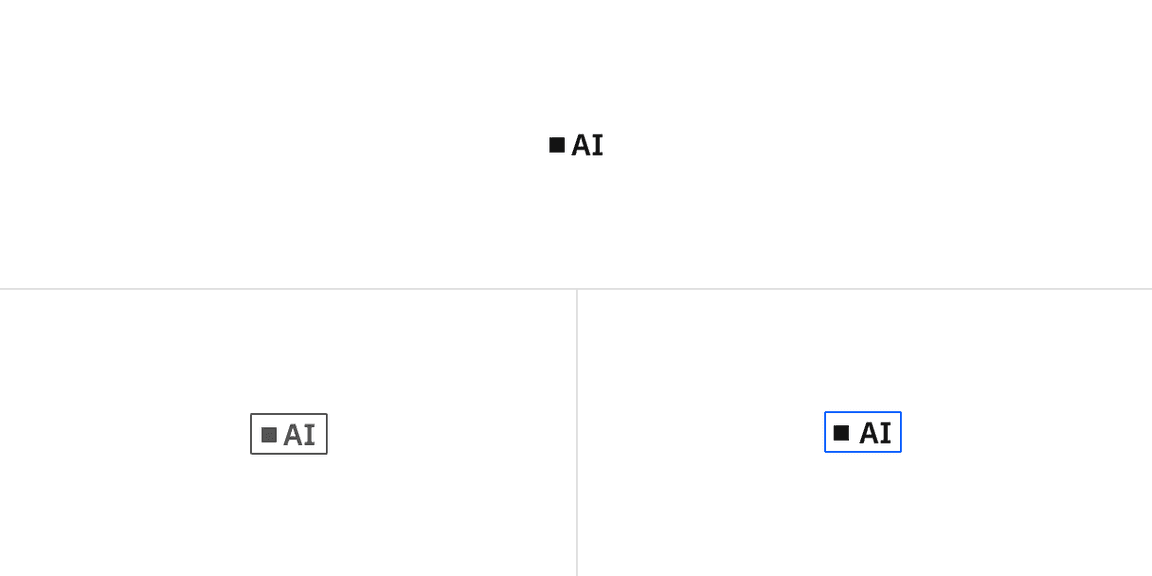

Examples of inline AI label states

Element	Property	Color token
Popover background	background	$ai-popover-background
	linear-gradient: start	$ai-aura-start
	linear-gradient: end	$ai-aura-end
Popover border	linear-gradient: start	$ai-border-start
	linear-gradient: end	$ai-border-end

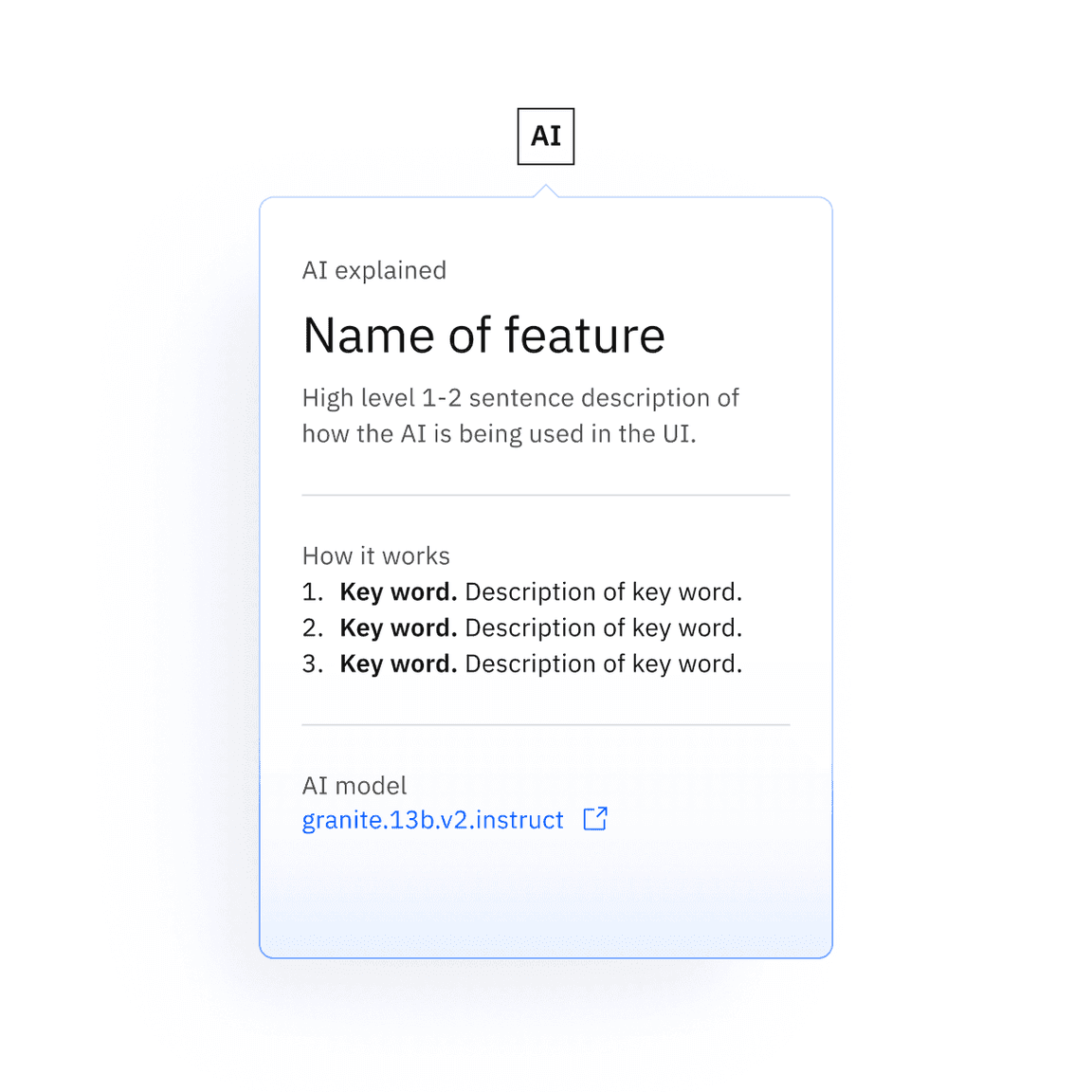

Examples of an explainability popover

Typography

Default type

Element	Font-size (px/rem)	Font-weight	Type token
Text (xl)	20 / 1.25	SemiBold / 600	$heading-03
Text (sm–lg)	16 / 1	SemiBold / 600	$heading-02
Text (2xs–xs)	12 / 0.75	SemiBold / 600	–
Text (mini)	9 / 0.5625	SemiBold / 600	–

Inline type

Element	Font-size (px/rem)	Font-weight	Type token
Text (lg)	16 / 1	SemiBold / 600	$heading-02
Text (md)	14 / 0.875	SemiBold / 600	$heading-01
Text (sm)	12 / 0.75	SemiBold / 600	–

Element	Font-size (px/rem)	Font-weight	Type token
Text	14 / 0.875	Regular / 400	$label-02
Title	28 / 1.75	Regular / 400	$heading-04
Body	14 / 0.875	Regular / 400	$body-01

Structure

Default structure

Element	Property	Value	Spacing token
Button	border	1px	–
	height	See sizes	–
Text	padding	centered	–

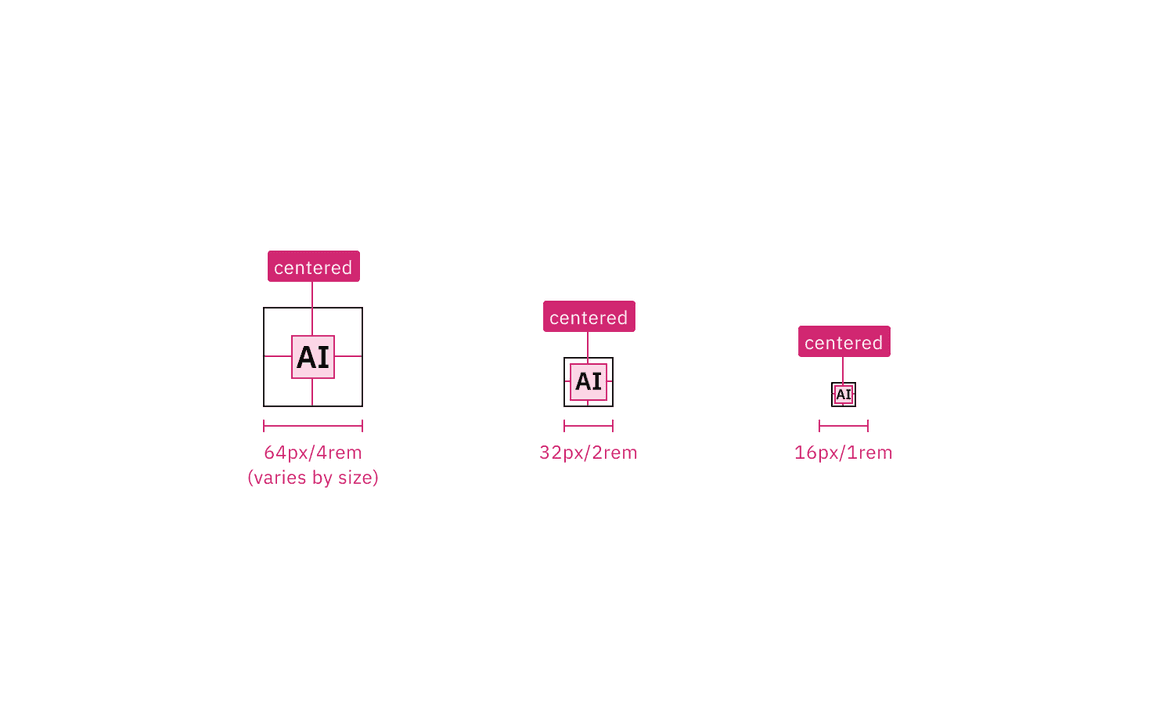

Structure of default AI labels

Recommended structure and spacing measurements for default AI label | px / rem

Inline structure

Element	Property	px/rem	Spacing token
Text	padding-left	4px	$spacing-02
Button	border	1px	–
	padding-left, padding-right	4px	$spacing-02
	height	See sizes	–
Bullet (sm-md)	height, width	4px	–
Bullet (lg)	height, width	8px	–

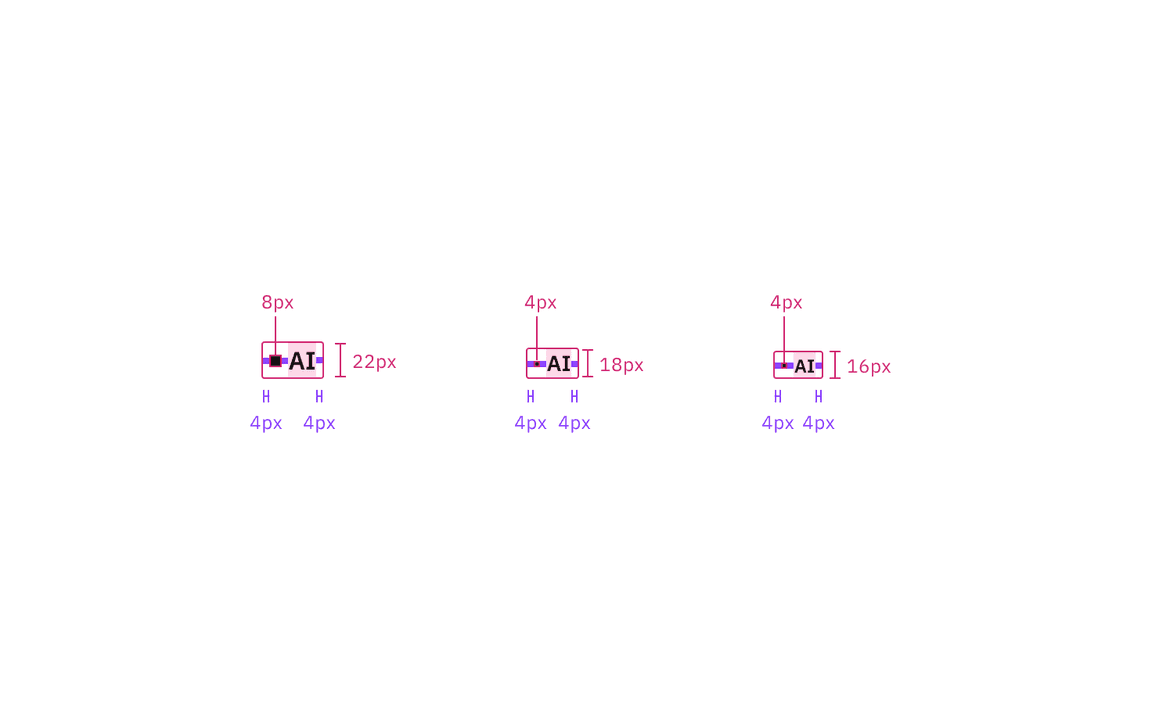

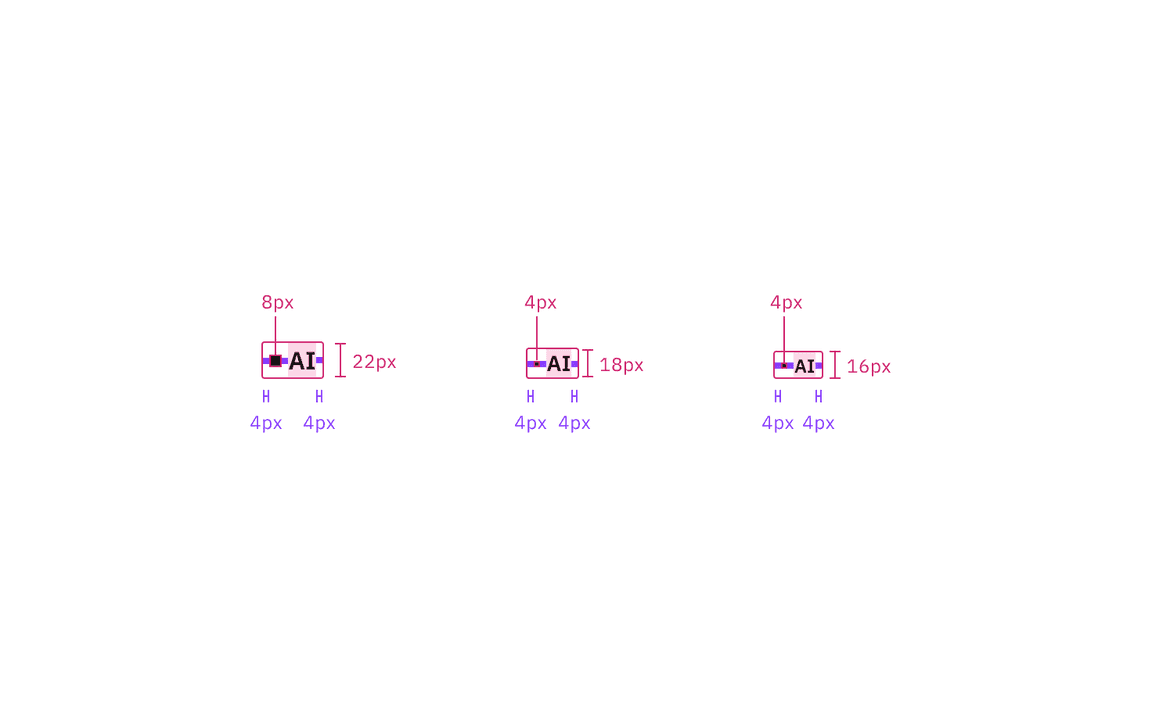

Structure of inline AI labels

Recommended structure and spacing measurements for inline AI label | px / rem

Element	Property	px/rem	Spacing token
Container	padding	24px	$spacing-06
Footer	height	48px	–

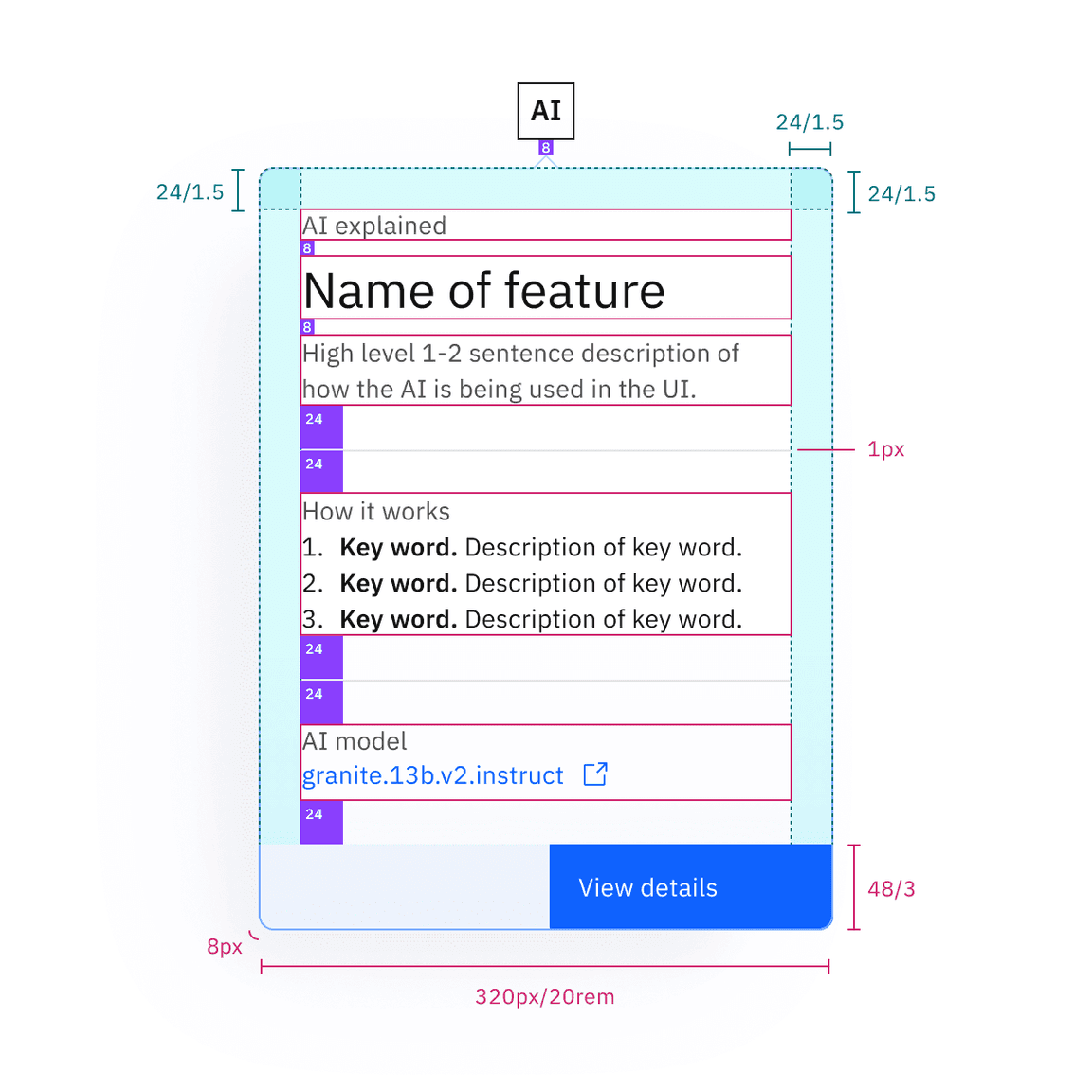

Structure of the explainability popover

Recommended structure and spacing measurements for the explainability popover | px / rem

Sizes

Default sizes

Default size	Height (px/rem)
Mini	16 / 1
2x small (2xs)	20 / 1.25
Extra small (xs)	24 / 1.5
Small (sm)	32 / 2
Medium (md)	40 / 2.5
Large (lg)	48 / 3
Extra large (xl)	64 / 4

Inline sizes

Inline size	Height (px/rem)
Small (sm)	16 / 1
Medium (md)	18 / 1.125
Large (lg)	22 / 1.375
