Form

Design annotations are needed for specific instances shown below, but Carbon already incorporates accessibility into the components that make up a form. Refer to form components’ individual accessibility tabs for specific considerations.

Accessibility testing status

For every latest release, Carbon runs tests on all components to meet the accessibility requirements. These different statuses report the work that Carbon has done in the back end. These tests appear only when the components are stable.

Latest version: ^1.56.0 | Framework: React (@carbon/react)

ComponentAccessibility testStatusLink to source code
FormTest(s) that ensure the initial render state of a component is accessible.
Passes all automated tests with no reported accessibility violations.
GitHub link
Tests that ensure additional states of the component are accessible. This could be interactive states of a component or its multiple variants.
Automated or manual testing has been temporarily deferred.
Tests that ensure focus is properly managed, and all interactive functions of a component have a proper keyboard-accessible equivalent.
Test data is either not available or not applicable for this component state.
This manual testing ensures that the visual information on the screen is properly conveyed and read correctly by screen readers such as JAWS, VoiceOver, and NVDA.
A human has manually tested this component, e.g. screen reader testing.
Form groupTest(s) that ensure the initial render state of a component is accessible.
Passes all automated tests with no reported accessibility violations.
GitHub link
Tests that ensure additional states of the component are accessible. This could be interactive states of a component or its multiple variants.
Automated or manual testing has been temporarily deferred.
Tests that ensure focus is properly managed, and all interactive functions of a component have a proper keyboard-accessible equivalent.
Test data is either not available or not applicable for this component state.
This manual testing ensures that the visual information on the screen is properly conveyed and read correctly by screen readers such as JAWS, VoiceOver, and NVDA.
A human has manually tested this component, e.g. screen reader testing.
Form labelTest(s) that ensure the initial render state of a component is accessible.
Passes all automated tests with no reported accessibility violations.
GitHub link
Tests that ensure additional states of the component are accessible. This could be interactive states of a component or its multiple variants.
Passes all automated tests with no reported accessibility violations.
Tests that ensure focus is properly managed, and all interactive functions of a component have a proper keyboard-accessible equivalent.
Passes all automated tests with no reported accessibility violations.
This manual testing ensures that the visual information on the screen is properly conveyed and read correctly by screen readers such as JAWS, VoiceOver, and NVDA.
A human has manually tested this component, e.g. screen reader testing.
Fluid formTest(s) that ensure the initial render state of a component is accessible.
Passes all automated tests with no reported accessibility violations.
GitHub link
Tests that ensure additional states of the component are accessible. This could be interactive states of a component or its multiple variants.
Automated or manual testing has been temporarily deferred.
Tests that ensure focus is properly managed, and all interactive functions of a component have a proper keyboard-accessible equivalent.
Test data is either not available or not applicable for this component state.
This manual testing ensures that the visual information on the screen is properly conveyed and read correctly by screen readers such as JAWS, VoiceOver, and NVDA.
Test data is either not available or not applicable for this component state.

What Carbon provides

Carbon bakes keyboard operation into the components that make up a form, improving the experience of blind users and others who operate via the keyboard. Carbon incorporates many other accessibility considerations, some of which are described below.

Information icons

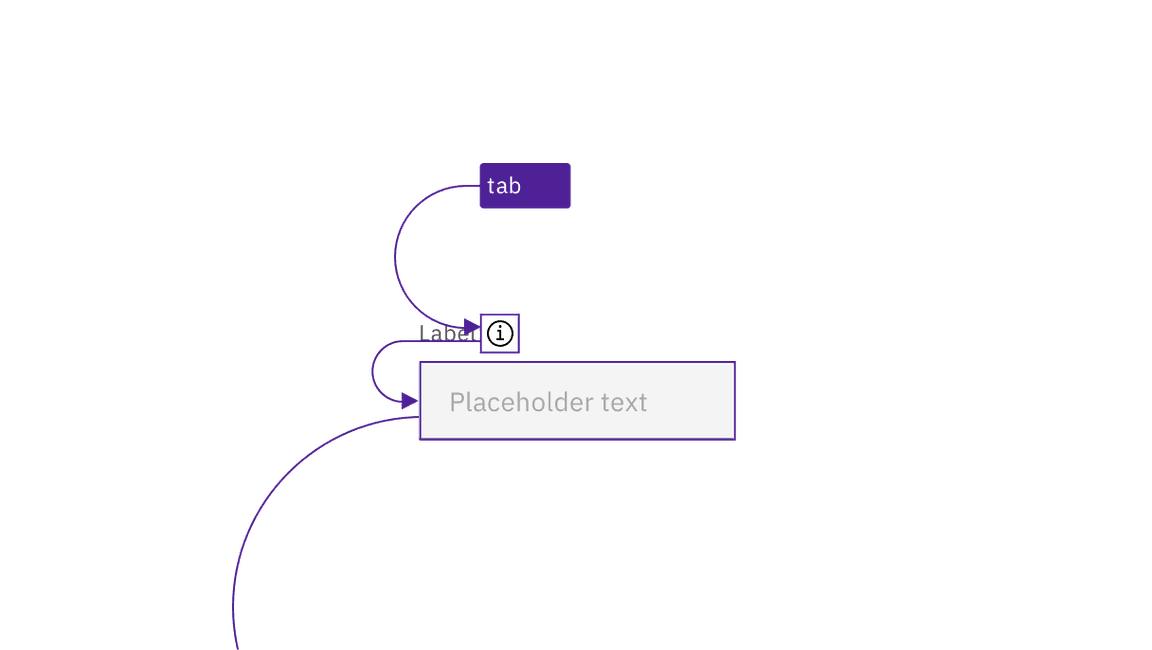

A common challenge for forms is how to surface additional information to the user without making the form too dense. Carbon provides an information icon toggletip to ensure such information is predictable and keyboard accessible. The toggletip is a button, which is in the tab order. Both Space and Enter open the tip, and Esc dismisses it.

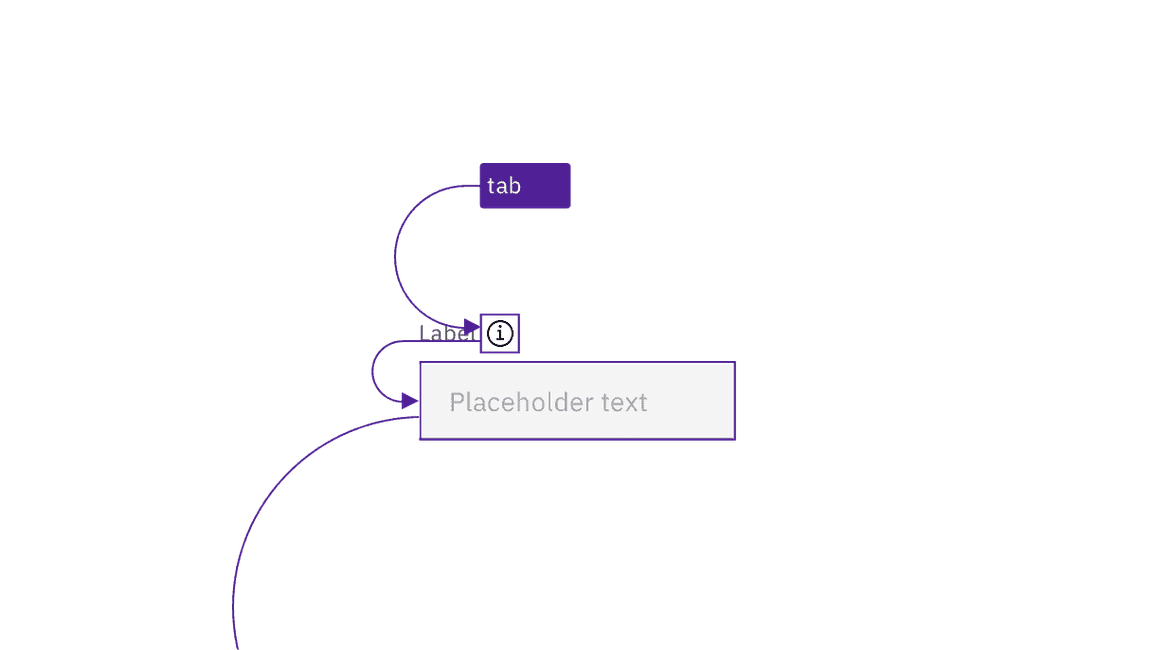

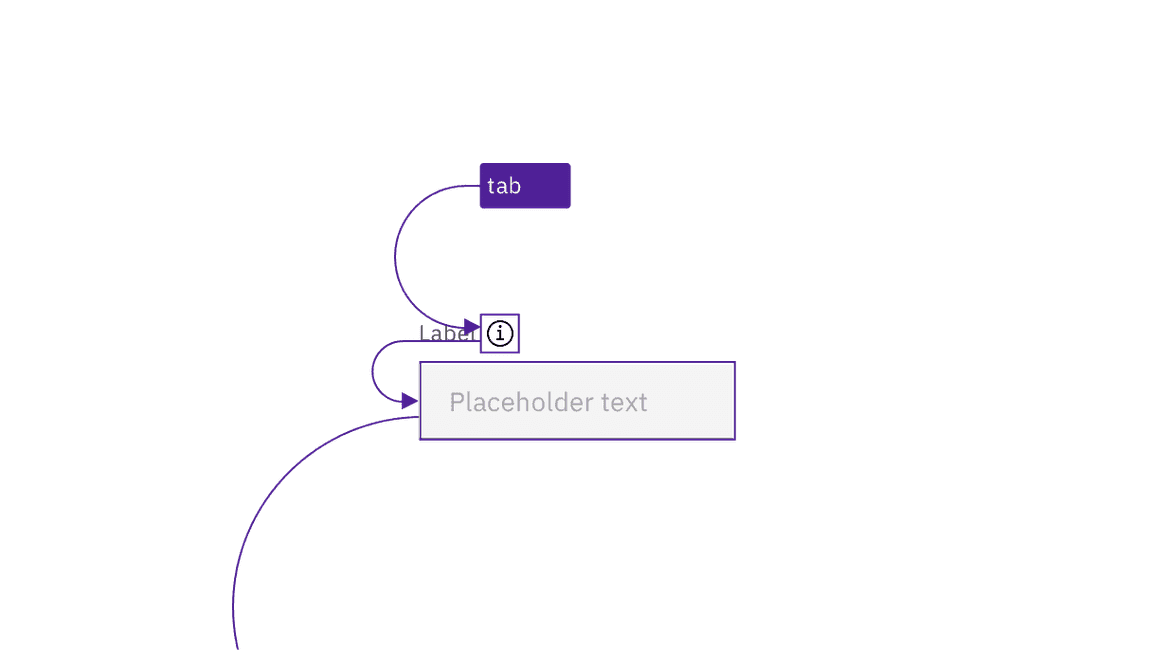

example of information icon taking separate focus in a text input

The toggletip pattern is used to make form help text keyboard accessible.

Error handling

Carbon incorporates accessible inline error and warning messages into many components, such as text inputs. Error states are also conveyed programmatically to assistive technologies.

Design recommendations

Design annotations and considerations are needed for the following situations.

Identify requirements at the start of the form

Traditionally, a legend at the start of a form identifies the symbol (often an asterisk) used for required fields, and the symbol is repeated as part of the label for each appropriate field. This is still considered the most accessible implementation. However, as discussed in Optional versus required fields, Carbon allows for either the required or optional fields to be the inputs identified. Especially where only optional fields are indicated, an instruction should precede a form, providing the context for whether required or optional fields are indicated. The traditional phrasing is “All fields are required unless marked as optional” (or the reverse). See the Equal Access Toolkit topic Required fields for more information.

By convention, simple username/password login forms do not need such an instruction (or even to be marked as required), since the context is clear to users.

Be familiar with the accessibility of common form components

The following topics each have their own accessibility considerations, which improve the overall form experience:

Development considerations

Keep these considerations in mind if you are modifying Carbon patterns or creating a custom form or input component.

  • A form must be wrapped in a <form> element.
  • Required fields must be identified programmatically, either via the label or with aria-required.
  • Remember to supply an aria-label, aria-labelledby or title to the component to comply with accessible naming
  • Helper text and other instructions should be surfaced to users via aria-describedby or other accessible techniques. See Programmatically associate inputs with labels.
  • See the ARIA authoring practices on forms and labels for more considerations.
