Color

Maintaining consistent and engaging digital interfaces throughout IBM, whether applications or experiences, demands extended guidance around color usage. The following concepts provide the foundation as we strive to achieve balance and harmony through our User Interface design.



Introduction

Application of the color palette brings a unified and recognizable consistency to IBM’s array of digital products and interfaces. This consistency is grounded in a set of well-defined rules about how to work with the Carbon component library in the context of dark and light themes.

6 screenshots showing a range of color schemes and considerations for text and data visualizations

Color anatomy

Carbon’s default themes are derived from the IBM Design Language color palette. The neutral gray family is dominant in the default themes, making use of subtle shifts in value to organize content into distinct zones.

The core blue family serves as the primary action color across all IBM products and experiences. Additional colors are used sparingly and purposefully.

Alert Colors

Layering model

Colors in the neutral gray palette are layered on top of each other to create depth and spatial associations. The layering model defines the logic of how colors stack on top of each other in a UI when using the Carbon themes. Aspects of the layering model are built directly into the themes, color tokens, and components.

The layering model differs between the light and dark themes.

  • In the light themes, layers alternate between White and Gray 10 with each added layer.
  • In the dark themes, layers become one step lighter with each added layer.
Layering model for light themes

Layering model for the White theme (left) and Gray 100 theme (right)


Implementing color

Carbon uses tokens and themes to manage color. Tokens are role-based, and themes specify the color values that serve those roles in the UI.

TermDefinition
ThemeA theme is a collection of colors designed to create a specific aesthetic. Themes control the color value assigned to a token. For example, Gray 100 theme.
TokenA token is the role-based identifier that assigns a color. Unlike hex codes, tokens apply universally across themes. For example, $layer, $border-subtle, $support-error.
RoleA role is the systematic usage of a color assigned to a token. Roles cannot be changed between themes.
ValueA value is the unique visual attribute (hex code, rgba value) assigned to a token through the use of themes.

Themes

Themes serve as an organizational framework for color in Carbon, with each theme based on a specific primary background color. And they actually get their names from their background color. There are two default light themes and two default dark themes.

The light themes are based on White and Gray 10 backgrounds, and the dark themes use Gray 100 and Gray 90 backgrounds. Within each theme, the values for the universal color tokens use the primary background color as the base of its layering model.

White
Light
Gray 10
Gray 100
Dark
Gray 90

Global background colors
ThemePrimary backgroundTokenHex value
WhiteGlobal Background Light$background#ffffff
Gray 10Global Background Light$background#f4f4f4
Gray 90Global Background Dark$background#262626
Gray 100Global Background Dark$background#161616

Light themes

There are two light themes in Carbon: White and Gray 10. For enabled UI colors light themes primarily use the color range of White to Gray 20, and for text and icons uses the color range between Gray 100 and Gray 60.

All of the themes are available in Design kits.

Layering model

In the light themes, layers alternate between White and Gray 10.

  • White theme: uses White as the global background color and is layered first with components using Gray 10 backgrounds. The second layer uses White and the third layer used Gray 10.
  • Gray 10 theme: uses Gray 10 as the global background color and is layered first with components using White backgrounds. The second layer uses Gray 10 and the third layer used White.
A dashboard in the white theme
Gray 10 dropdown on White background.

Gray 10 dropdown on White background.

Gray 10 dropdown on a Gray 20 background

Avoid use of midtones.


Dark themes

There are two dark themes: Gray 90 and Gray 100. For enabled UI colors, dark themes primarily use the color range of Gray 100 through Gray 70, and for text and icons uses the color range between White and Gray 50.

All of the themes are available in Design kits.

Layering model

In the dark themes, layers become one step lighter with each added layer.

  • Gray 90 theme: uses Gray 90 as the global background color and is layered first with components using Gray 80 backgrounds. The second layer uses Gray 70 and the third layer used Gray 60.
  • Gray 100 theme: uses Gray 100 as the global background color and is layered first with components using Gray 90 backgrounds. The second layer uses Gray 80 and the third layer used Gray 70.
A dashboard in the Gray 90 theme

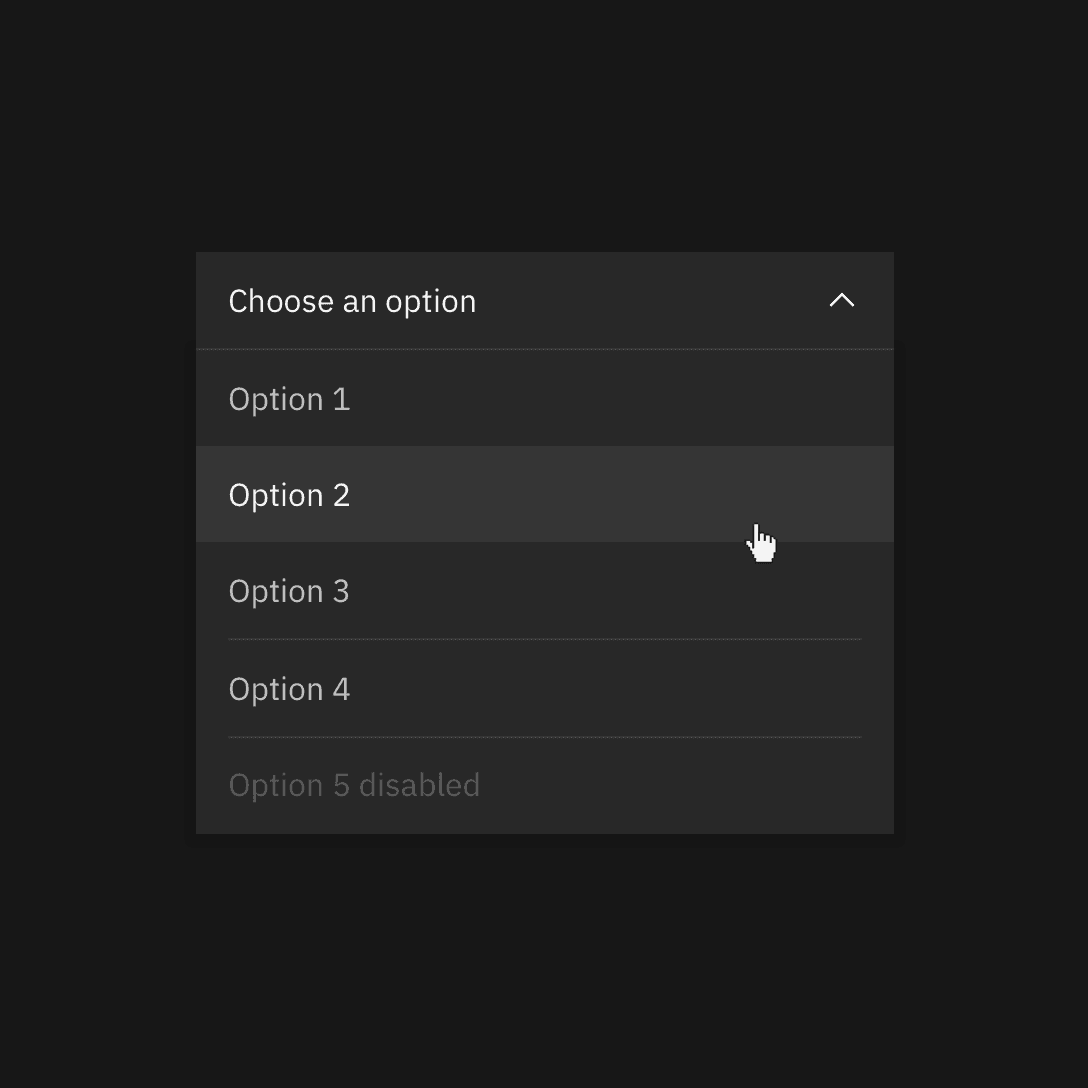

Gray 90 dropdown on Gray 100 background

Gray 90 dropdown on Gray 100 background.

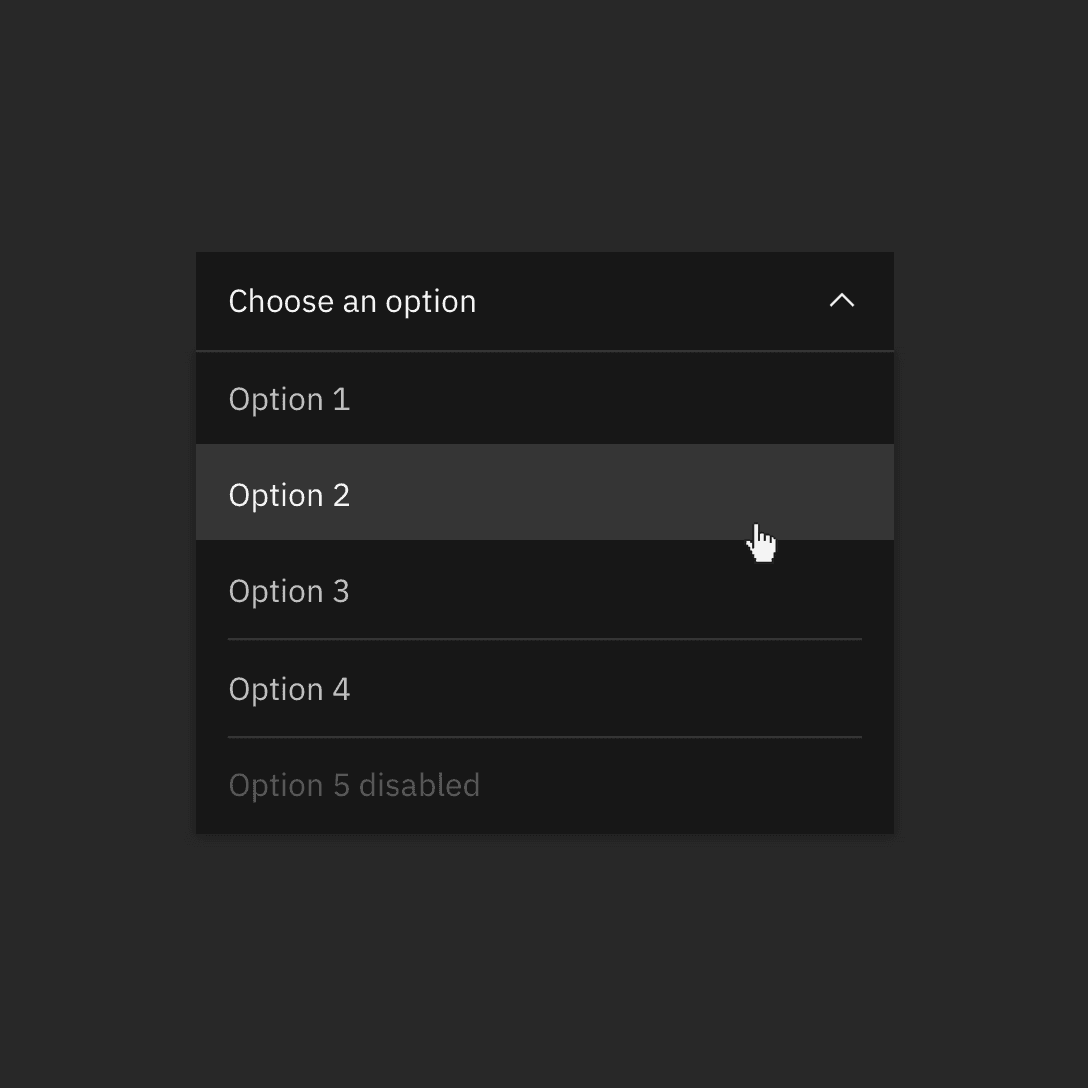

Gray 100 dropdown on Gray 90 background

Do not apply components that are darker than the background unless using high-contrast mode.


High contrast moments

In some cases, it is helpful to apply light components to dark backgrounds or dark components to light backgrounds. This technique is useful to focus attention or create visual tension. Some high contrast moments are baked into the themes by using the inverse tokens, like the tooltip component. Other times high contrast moments can be achieved through applying inline theming for instances like a dark UI Shell Header with a light theme page.

High contrast example in a light theme.
High contrast example in a dark theme.

Tokens

Tokens are method of applying color in a consistent, reusable, and scalable way. They help us abstract how we use color from the values themselves. They are used in place of hard coded values, like hex codes. Tokens allow for value changes to be made at scale, making design language changes easy to implement, as well as making possible color functionalities like inline theming and light or dark mode.

Each token is assigned a role and a value. The role determines what element to apply a token too and the value is the actual color (hex code) that appears in the assigned theme. Color token names and roles are the same across themes, only the assigned value will change with the theme. For example, under the hood the $text-secondary token can dynamically map to Gray 70 or Gray 30 depending on the theme.

See the color usage tab for the full list of color tokens.

Token names

For quick reference, the role of a token is represented in the token name itself to help you correctly apply tokens. The first part of the token name references the general UI element the color is being applied to, like backgroundtext, or border. The second part of token name will specify its unique role within the element group like $border-subtle or $text-primary. Additionally, some tokens include aninteraction state at the end, like $background-hover.

Generic text input showing same tokens assigned for White and Gray 100 themes.

Color tokens for components are the same across themes as shown by this text input using the White theme (left) and Gray 100 theme (right).


Core tokens

Color tokens that can be applied across components are called core tokens. There are ten main groups of core color tokens. They are grouped by the common UI element that they are applied to. Token groups makes it easier to find and apply color tokens. Interaction state tokens are included in the group along side their enabled state tokens. There are a few core tokens that do not belong to the a group and stand as individual tokens like $overlay$highlight, and $interactive.

Some core tokens are part of an additional token group called layering tokens. These tokens are used to implement the layering model onto components. For more information, see the Implementation tab.

Token groupApplied to
BackgroundPage or primary backgrounds
LayerStacked backgrounds (includes layering tokens)
FieldForm and input backgrounds (includes layering tokens)
BorderDividers, rules, and borders between and around elements (includes layering tokens)
TextType and type styles
LinkStandalone and inline links
IconIcons and pictograms
SupportNotification elements and status indicators
FocusFocus states
SkeletonSkeleton states

Component tokens

Some components have their own specific color tokens, known as component tokens. They represent the properties associated with a particular component. They are not global tokens like the core tokens and should never be used for anything other than their own component. For a full list for component tokens see the color usage tab.

To see how the tokens are applied in the components themselves, visit the component’s style page.

Interaction states

In addition to the core set of enabled-state tokens, there are five other interaction states defined with tokens for each theme. Interaction tokens are signified by the addition of a state name added to the end of the base token name. For example, the $background hover state token is $background-hover.

The color layering model for interaction tokens is as follows:

  • For values between Black and Gray 70, interaction gets lighter.
  • For values between Gray 60 and White, interaction gets darker.
Hover states palette

Hover

Hover is a subtle visual change that appears when a mouse cursor moves over an interactive element. Hover states have their own tokens and are identified by -hover added to the end of the base token name, such as $background-hover.

In the IBM themes, hover states token values are “half steps” between two adjacent colors on the IBM core color palette steps. These values fall outside of the IBM core color palette steps and have their own spectrum. Hover colors should not be used for anything other hover states.

  • For values between Black and 70, the hover state is a half step lighter.
  • For values between 60 and White, the hover state is a half step darker.

Elements like text or icons that use secondary colors for their enabled state, will change to the primary color on hover, giving them a subtle emphasis. Most of the time, this shift in color (on the text or icon element) will be accompanied by a background hover color shift as well. For example, an overflow menu uses $text-secondary and $layer in its enabled state. On hover, the text switches to $text-primary and the background to $layer-hover.

Hover state colors are half steps

Shown in the white theme, '$layer' enabled color (1) has a value of 10 and '$layer-hover' (2) has a value of 15.


Active

The active state can be used to indicate a click, tap or down press of a button. Active tokens are identified by -active added after the base token name, such as $button-primary-active. Active state values are two full steps lighter or darker on the IBM color scale. For example, the Blue 60 active state is Blue 80.

  • For values between 100 and 70, the active state is two full steps lighter.
  • For values between 60 and 10, the active state is two full steps darker.

The exceptions are that White value shares the same active state value as Gray 10, and Black value shares the same active state value as Gray 100.

Active state colors are two steps over

Shown in the White theme, `$button-primary` enabled color (1) has a value of Blue 60 and `$button-primary-active` active color (2) has a value of Blue 80.


Selected

Selected states indicate item(s) or option(s) that have been chosen in the UI by the user through any input method. Selected tokens are identified by the -selected added after base token name, such as $layer-selected-01. The color logic for selected state is either one full step lighter or darker on the IBM color scale. For example, the Gray100 selected state is Gray 90.

  • For values between 100 and 70, the selected state is one full step lighter.
  • For values between 60 and 10, the selected state one full step darker.

The exception is that White shares the same selected state value as Gray 10, and Black shares the same selected state value as Gray 100.

Elements like text or icons that use secondary colors for their enabled state, will change to the primary color when selected, giving them a subtle emphasis. Most of the time, this shift in color (to the text or icon element) will be accompanied by a selected background color shift as well.

Selected state colors are one step over

Shown in the white theme, `$layer` enabled color (1) has a value of Gray 10 and `$layer-selected` selected color (2) has a value of Gray 20.


Focus

The focus state draws attention to the active element on a page when using the keyboard or voice to navigate. In Carbon, the focus of an element is most commonly indicated by a 2px border around the element. In order to make it easy to identify and locate on a page, most focus states use only one color per theme controlled through the $focus color token.

  • In the light themes, the focus state usually appears as a Blue 60 border.
  • In the dark themes, the focus state usually appears as a White border.

The exception is high contrast moments where a $focus-inverse color is used instead.

Focus states are required on all interactive elements and must pass 3:1 color contrast accessibility. Often times to achieve proper 3:1 contrast a $focus-inset border is used between the focus border and the element itself.

Focus state colors

White theme `$focus` color (1) and Gray 90 theme `$focus` color (2).


Disabled

A disabled state is applied to a component when the user is not allowed to interact with the component due to either permissions, dependencies, or pre-requisites. Disabled states completely remove the interactive function of a component and therefore don’t receive hover or focus. Disabled state styling is not subject to WC3 contrast compliance standards and is intentionally de-emphasized in a faded fashion.

Disabled elements are always styled in the Gray family no matter its base color. A component’s specific styling will depend on the elements within it and what layers they are placed on. Some tokens have their own specific disabled tokens, such as $layer-disabled, while other elements are grouped together and share a disabled token like $text-disabled.

  • For the light themes, disabled color values range from White to Gray 50
  • For the dark themes, disabled color values range from Gray 90 to Gray 40

Accessibility

Using various forms of contrast is the most important consideration when making user-friendly color and interface choices. Awareness of standards and best practices is the key to accessible color selections.
