Tabs are used to organize related content. They allow the user to navigate between groups of information that appear within the same context.

v11 update: The tab component variant names have changed. Default tabs has become Line tabs and Container tabs has become Contained tabs. The tabs component has also been refactored and now includes a composable component API which allows for additional style modifications like icons in tabs and secondary labels. For v10 implementation guidance, go to v10 Tabs.

Overview

Tabs are used to group different but related content, allowing users to navigate views without leaving the page. They always contain at least two items and one tab is active at a time. Tabs can be used on full page layouts or in components such as modals, cards, or side panels.

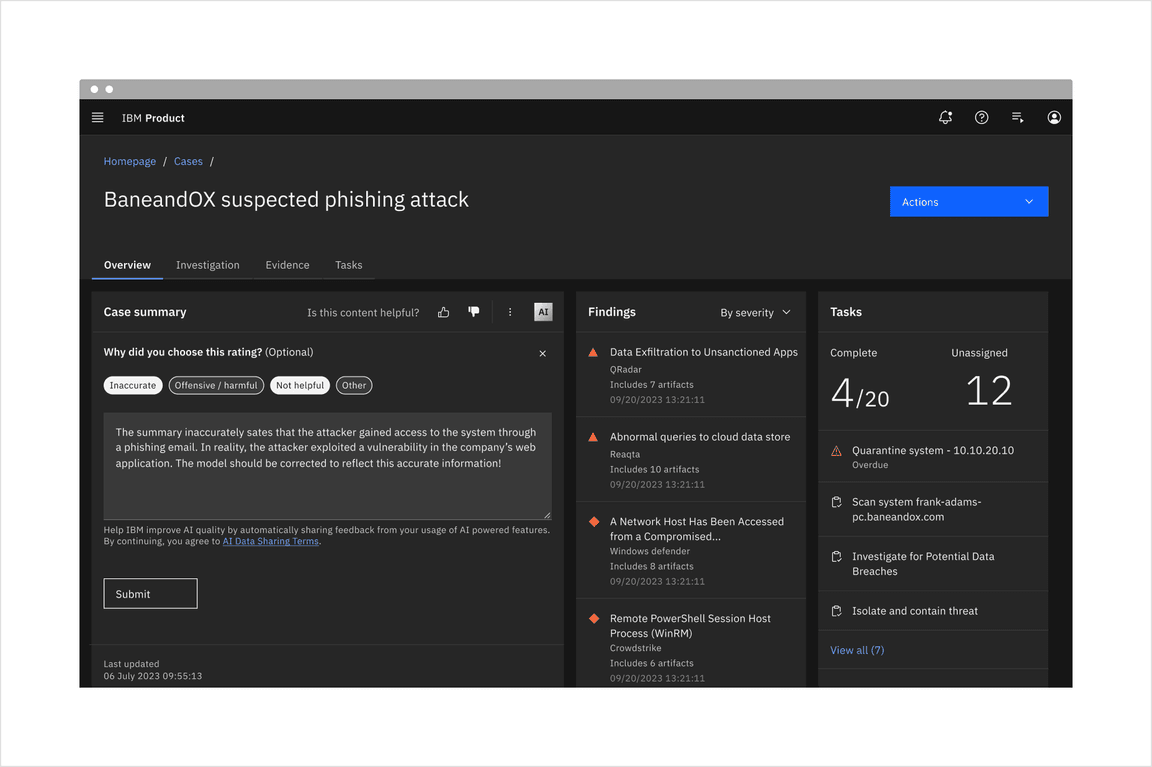

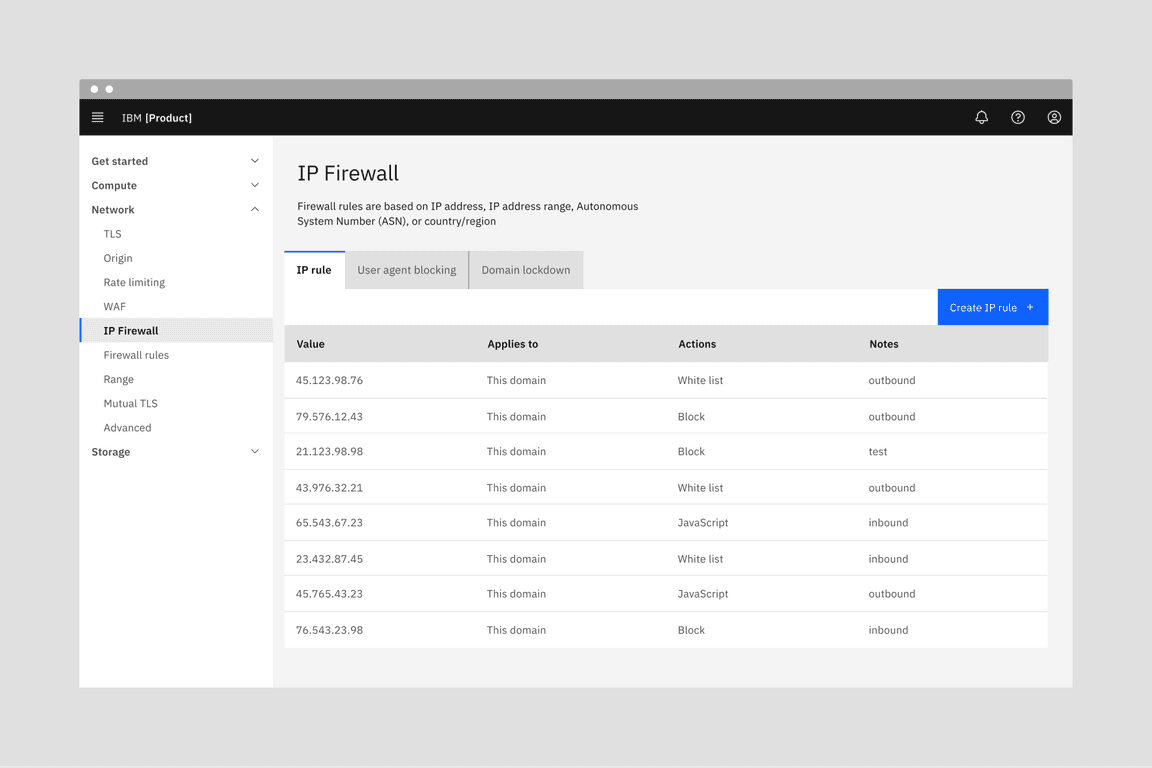

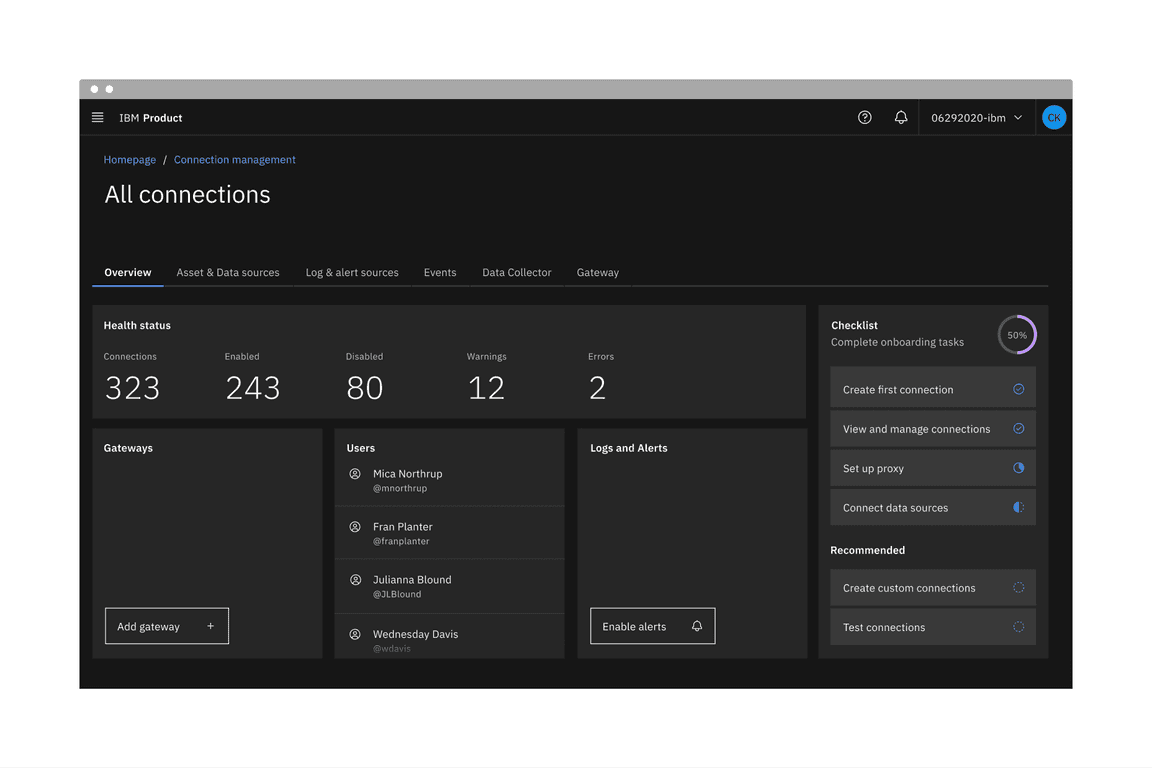

An example of tabs being used.

When to use

  • Use tabs to group related information into different categories, helping to reduce cognitive load.
  • Tabs can be used to organize content such as forms, settings, and dashboards so a user does not have to navigate away from their workflow to complete their task.

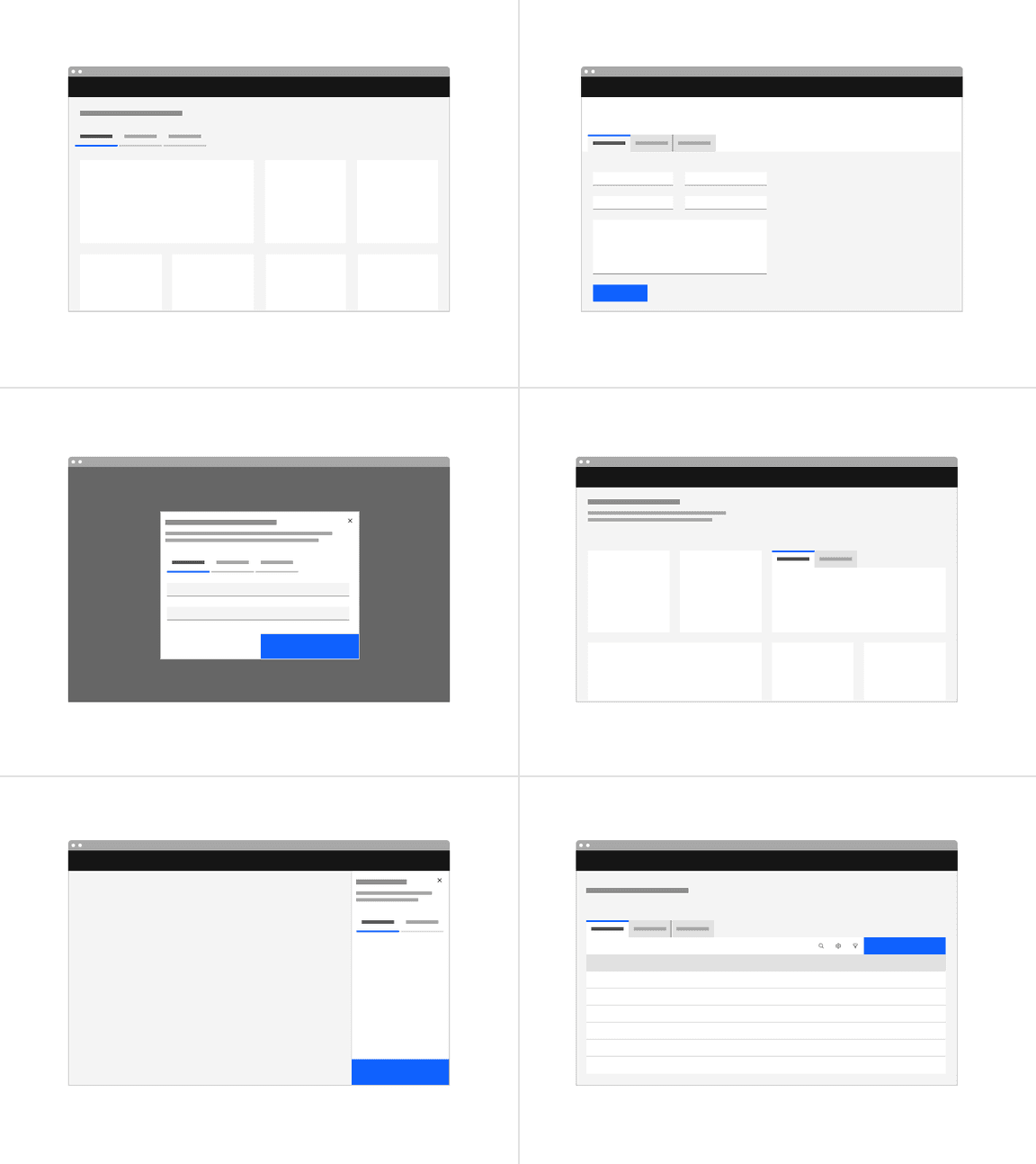

tab thumbnail.

When not to use

  • Tabs should never be used for primary navigation. If tabs become too complex, consider using a standard navigation pattern.
  • Tabs should not be used to indicate progress. Use the progress indicator instead.
  • Tabs should not be used if the user is comparing information in two groups, as this would result in the user having to click back and forth to complete a task.

Variants

VariantPurpose
LineA standalone tab that can also be nested within components. It is commonly used within components or for content using the entire page for layout, not connected to any other components.
ContainedAn emphasized tab that is always attached to a background container. It is commonly used for defined content areas, like sub-pages or attached to cards.

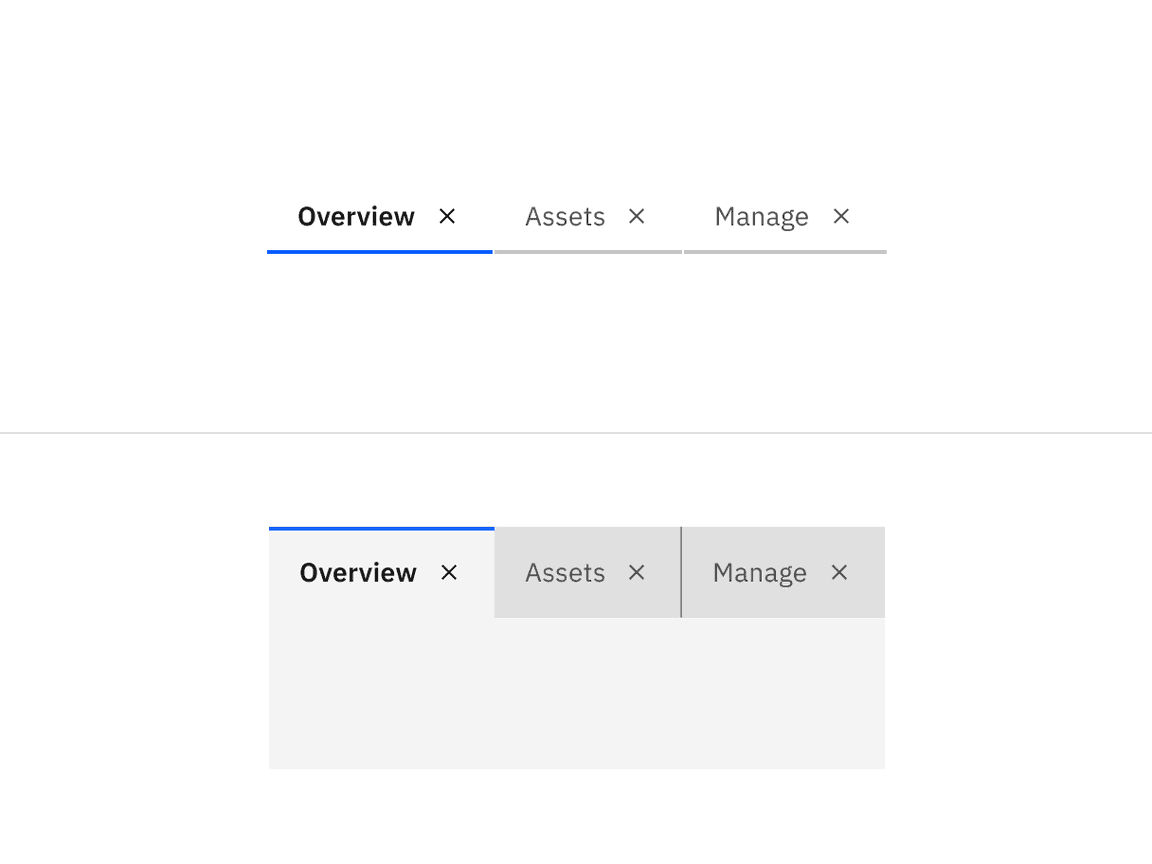

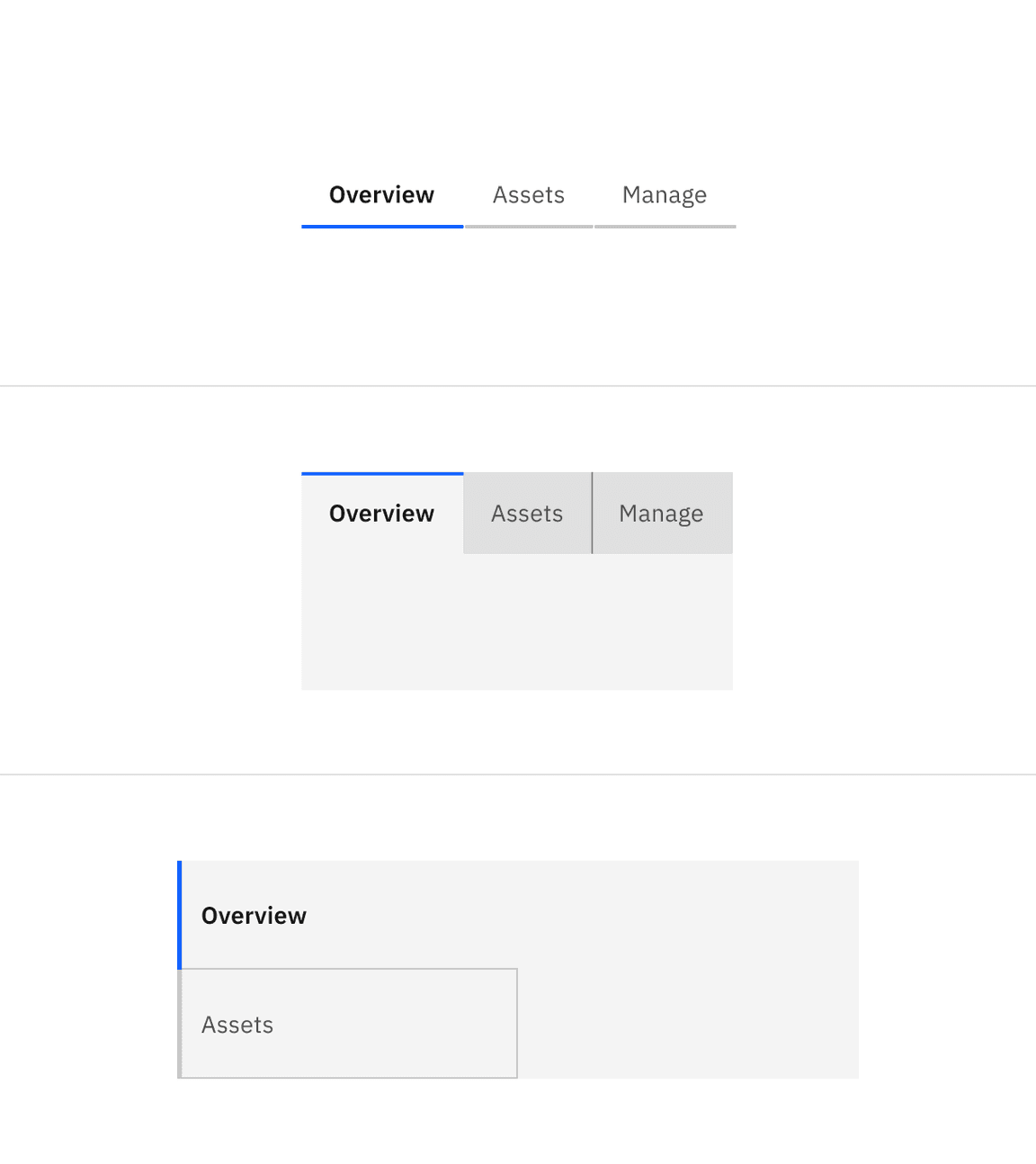

Examples of line tabs (top) and contained tabs (bottom)

Examples of line tabs (top) and contained tabs (bottom)

Live demo

<div style={{ width: '50%' }}>
<Tabs>
<TabList aria-label="List of tabs" contained>
<Tab>Tab Label 1</Tab>
<Tab>Tab Label 2</Tab>
<Tab disabled>Tab Label 3</Tab>
<Tab title="Tab Label 4 with a very long long title">
Tab Label 4 with a very long long title
</Tab>
<Tab>Tab Label 5</Tab>
</TabList>
<TabPanels>
<TabPanel>Tab Panel 1</TabPanel>
<TabPanel>
Tab Panel 2 <Button>Example button</Button>
</TabPanel>
<TabPanel>Tab Panel 3</TabPanel>
<TabPanel>Tab Panel 4</TabPanel>
<TabPanel>Tab Panel 5</TabPanel>
</TabPanels>
</Tabs>
</div>
TabList
Modifiers
activation
Tab
Modifiers

Formatting

The tab component consists of two distinct zones: selected and unselected. There are always at least two tabs and one is selected by default. Icons are optional.

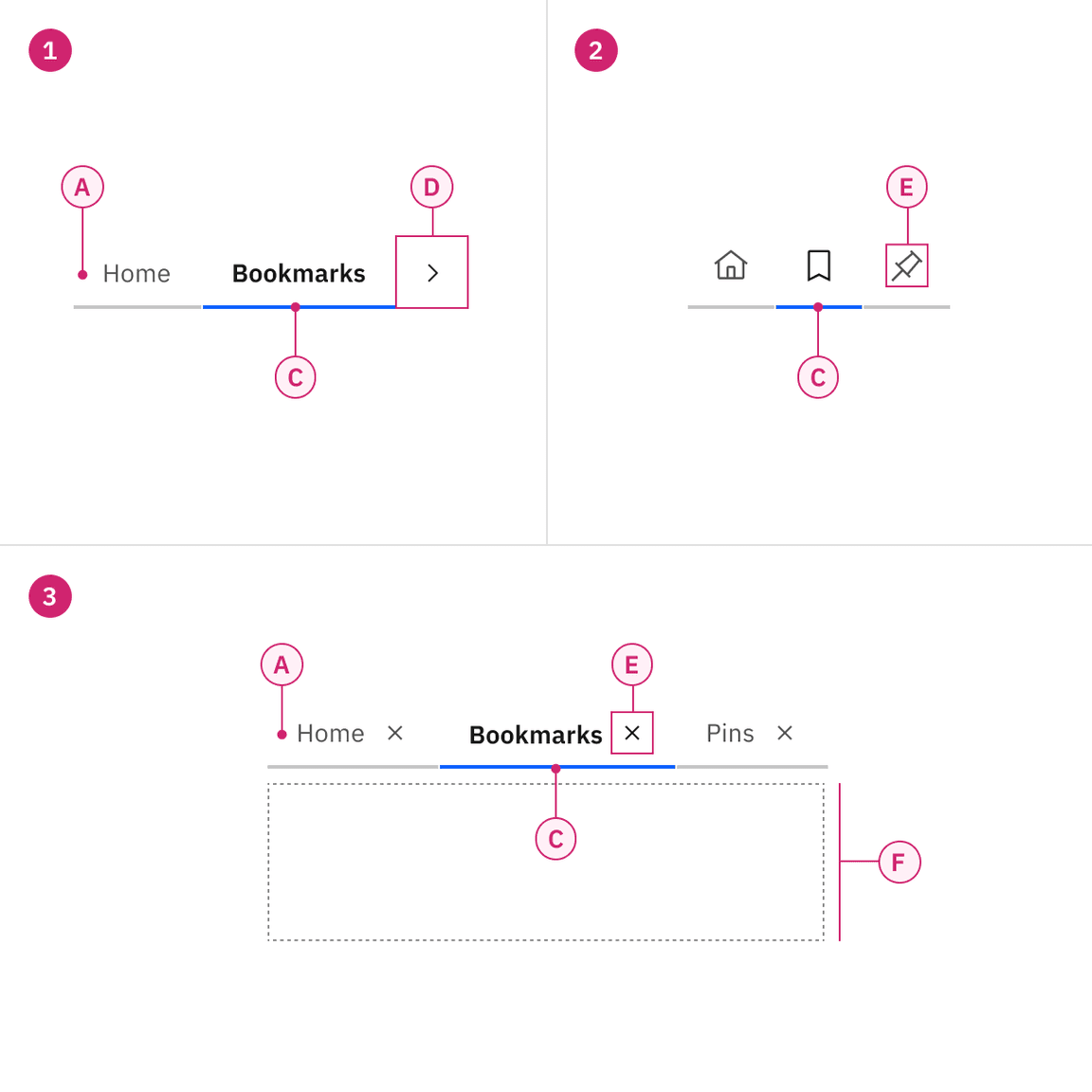

Anatomy of line tabs

Anatomy of line tabs

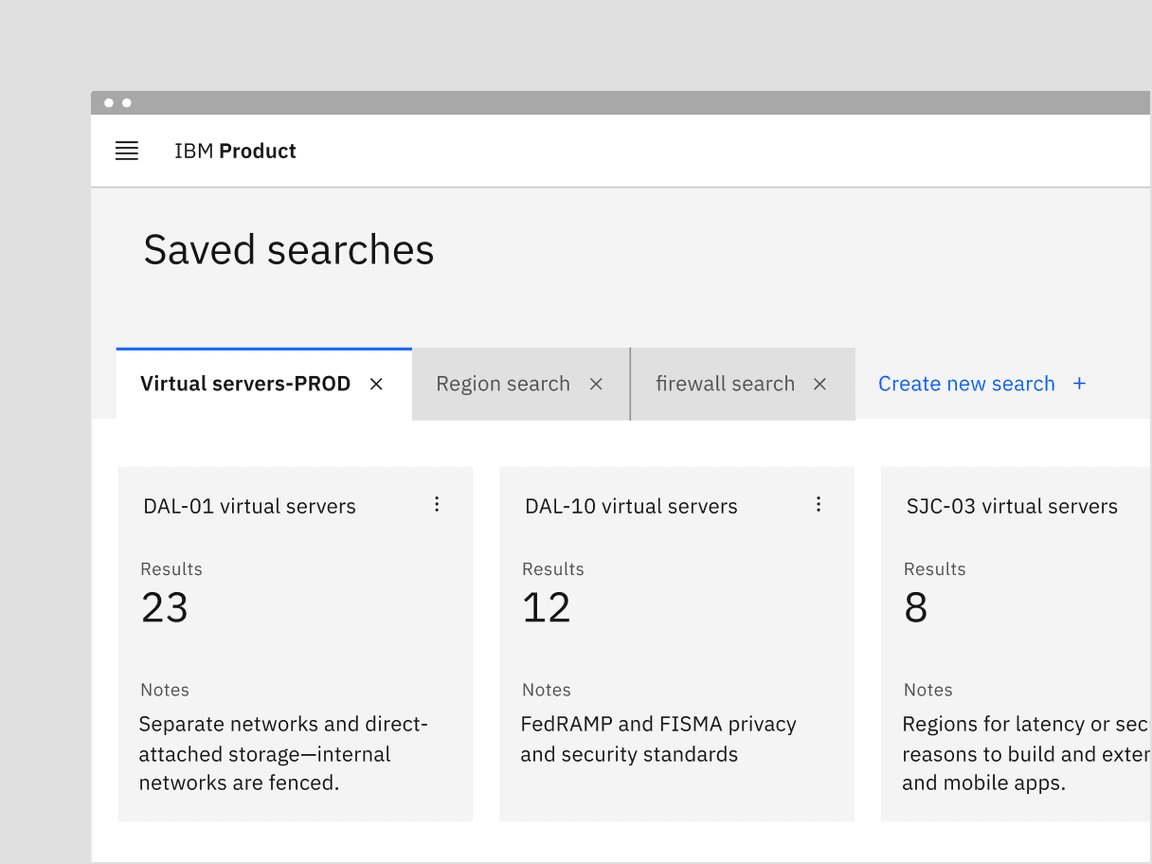

Note: The close icon button pattern is not a configurable prop, it is instead enabled through the composable component API. This requires additional styling and configuration.

1. Line tabs

A. Label
B. Indicator

3. Line tabs with icon

A. Label
B. Indicator
C. Icon

2. Icon-only line tabs

B. Indicator
C. Icon

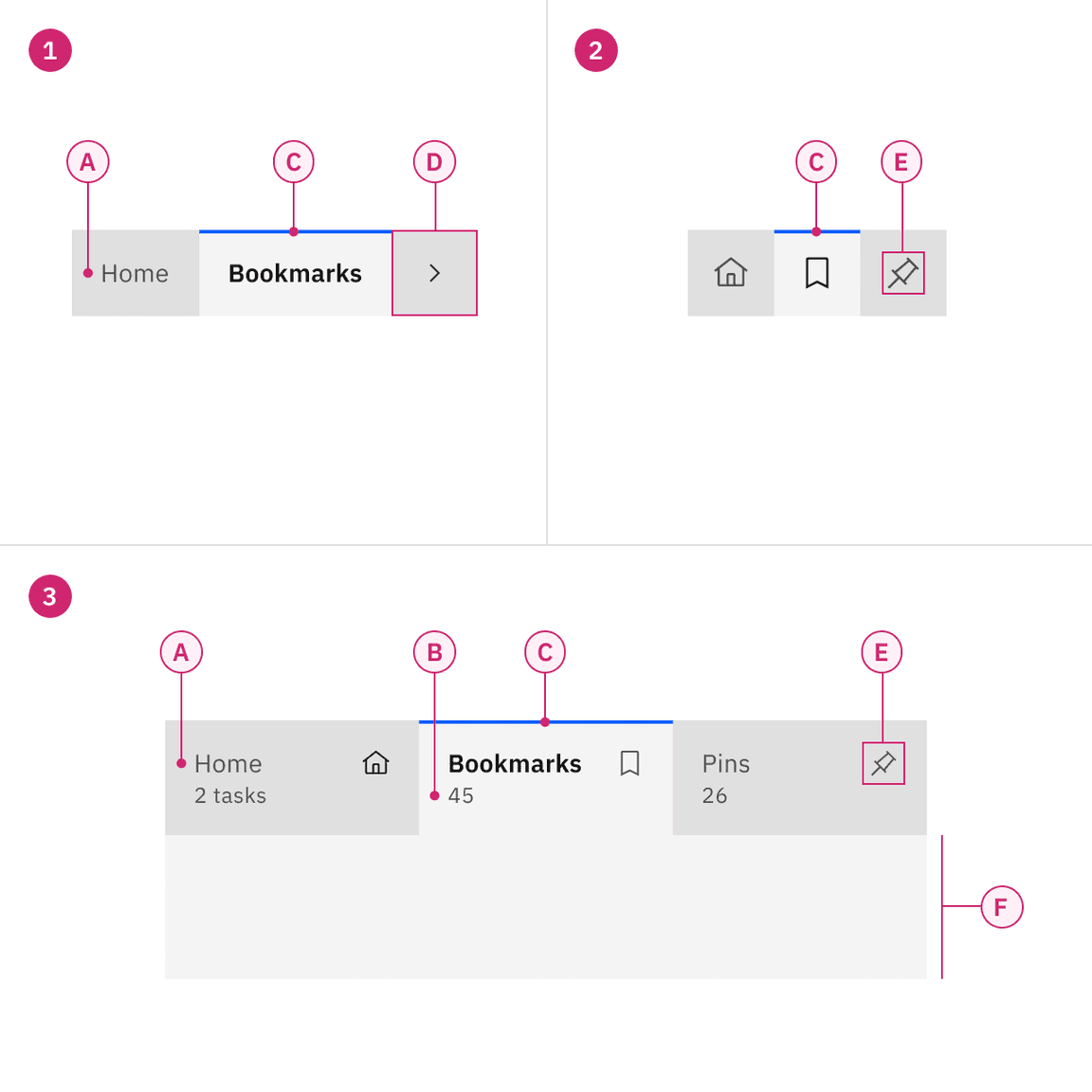

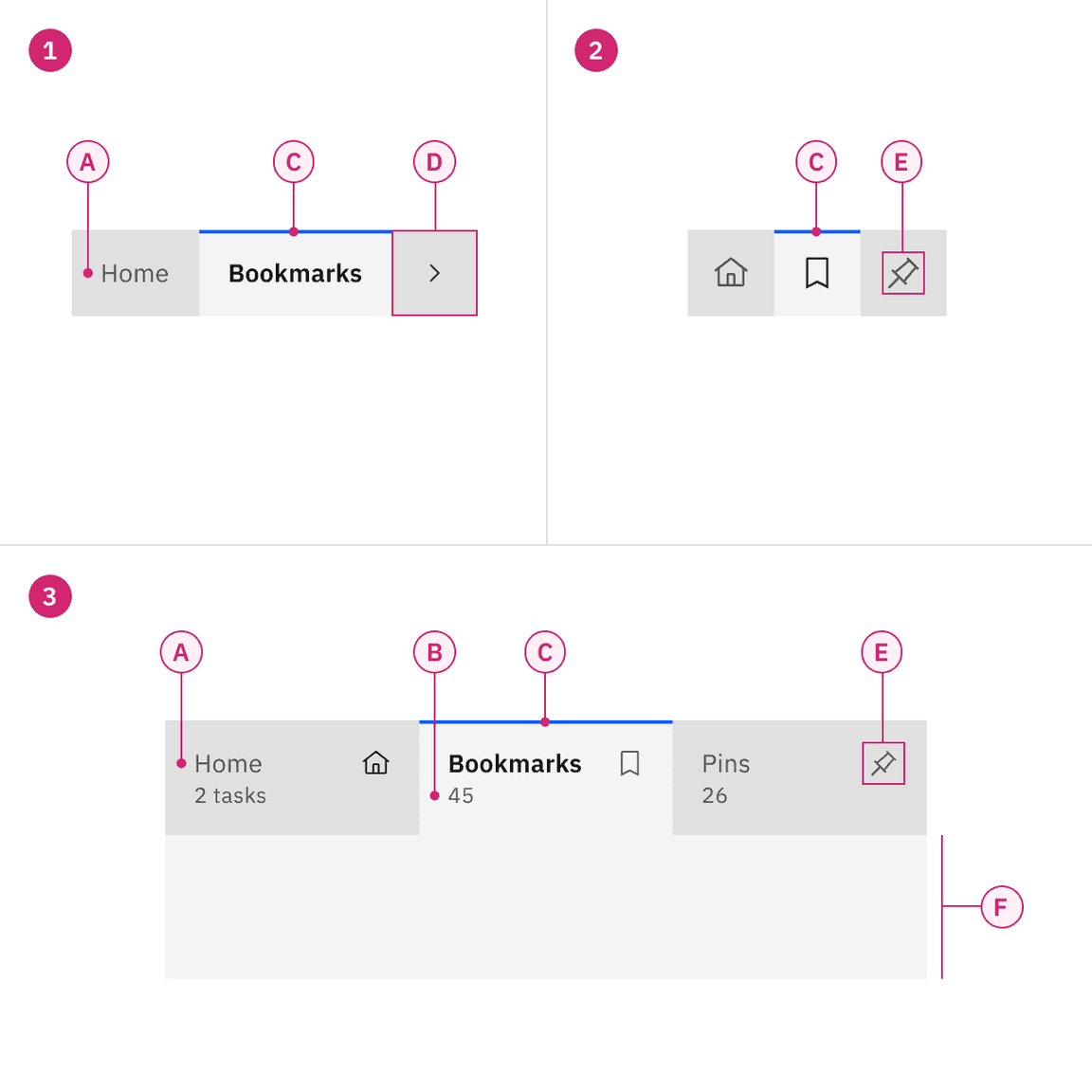

Anatomy of contained tabs

Anatomy of contained tabs

Note: The optional secondary label and icon patterns are not configurable props, but are instead enabled through the composable component API. This requires additional styling and configuration.

1. Contained tabs

A. Label
B. Indicator
D. Container

3. Contained tabs with icon and secondary label

A. Label
B. Indicator
C. Icon (optional)
D. Container
E. Secondary label (optional)

2. Contained tab with icons only

B. Indicator
C. Icon
D. Container

Alignment

Much like buttons, alignment of tabs depends on where they appear and whether or not they’re contained within another component. As a general rule, the first label for both line tabs and contained tabs align with the grid and the text below. If tabs are within another component, such as a card, follow the grid that you are using inside the component and align the label with text in the component.

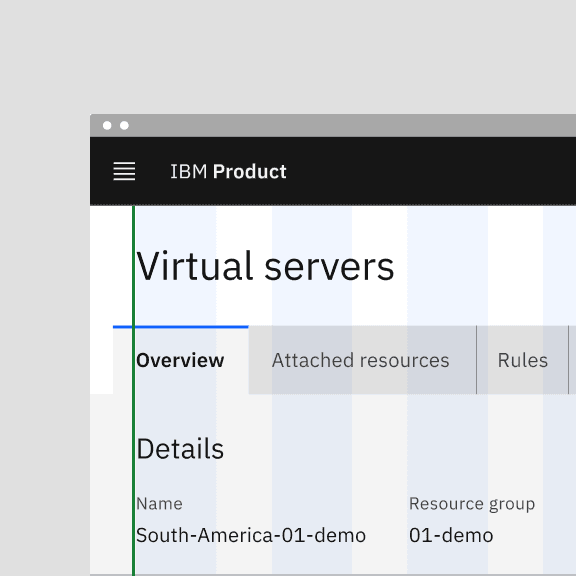

Do align tab labels with the grid

Do align tab labels with the grid

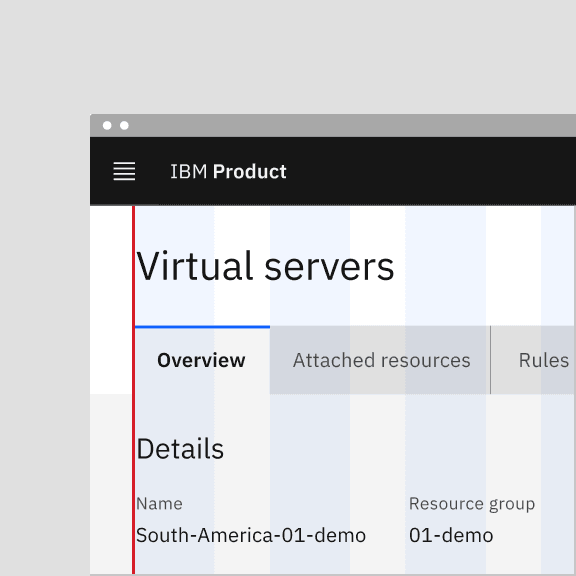

Do not align tab container with the grid

Do not align tab container with the grid

Auto-width

With both line tabs and contained tabs, auto-width is the default behavior. Each tab will be a different size depending on the label’s character count but will have consistent padding on each side of the label. The first label, selected by default, should align to the grid. Where the tabs end will vary and may not end on the grid. If needed, you may also use a line to help balance tabs with other components on the page.

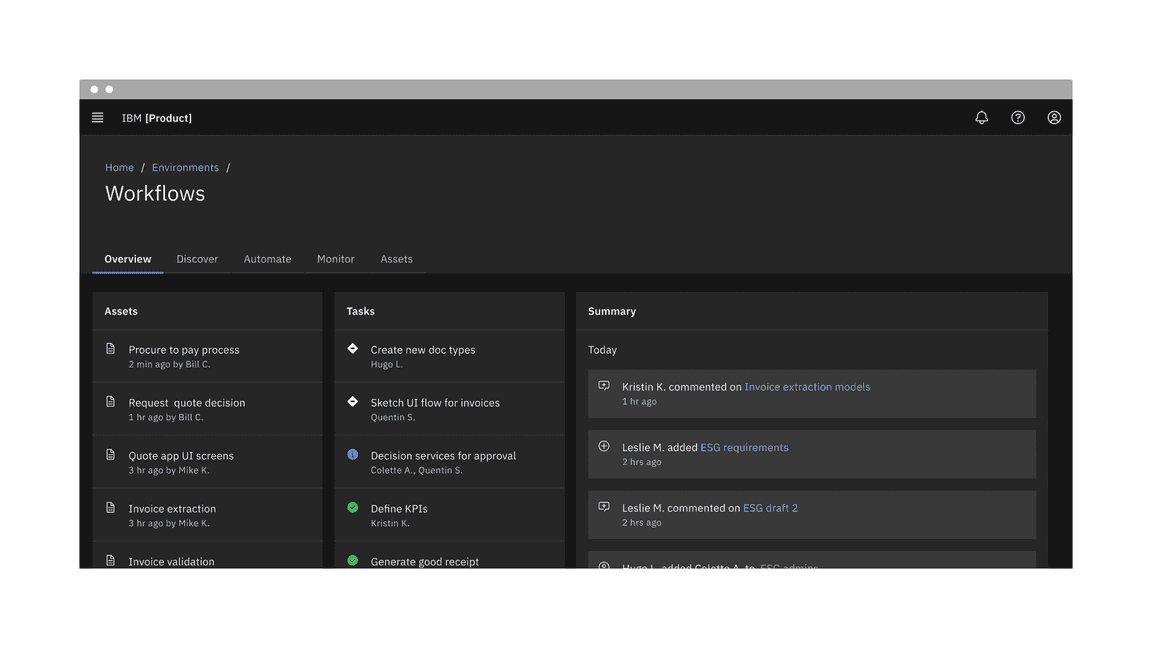

Autowidth tabs

Example of auto-width line tabs using a rule

Aligning to grid columns

Instead of using the default auto-width behavior, contained tabs also have the option to align to the grid. As a group, the tabs span a set of columns with each tab being equal in size. The first tab’s label should align to the first column you are using with the last tab in the group always ending at a column’s edge. The tabs in between will flow accordingly and may or may not align to the grid but will always be the same size.

Use the 2x grid to drive visual rhythm by spacing content in multiples of two columns and aligning the beginning and ending of the tab elements with content below the tabs when possible.

_Note: This is not currently implemented in the components, updates for alignment to the grid are incoming!_
Aligning to grid columns

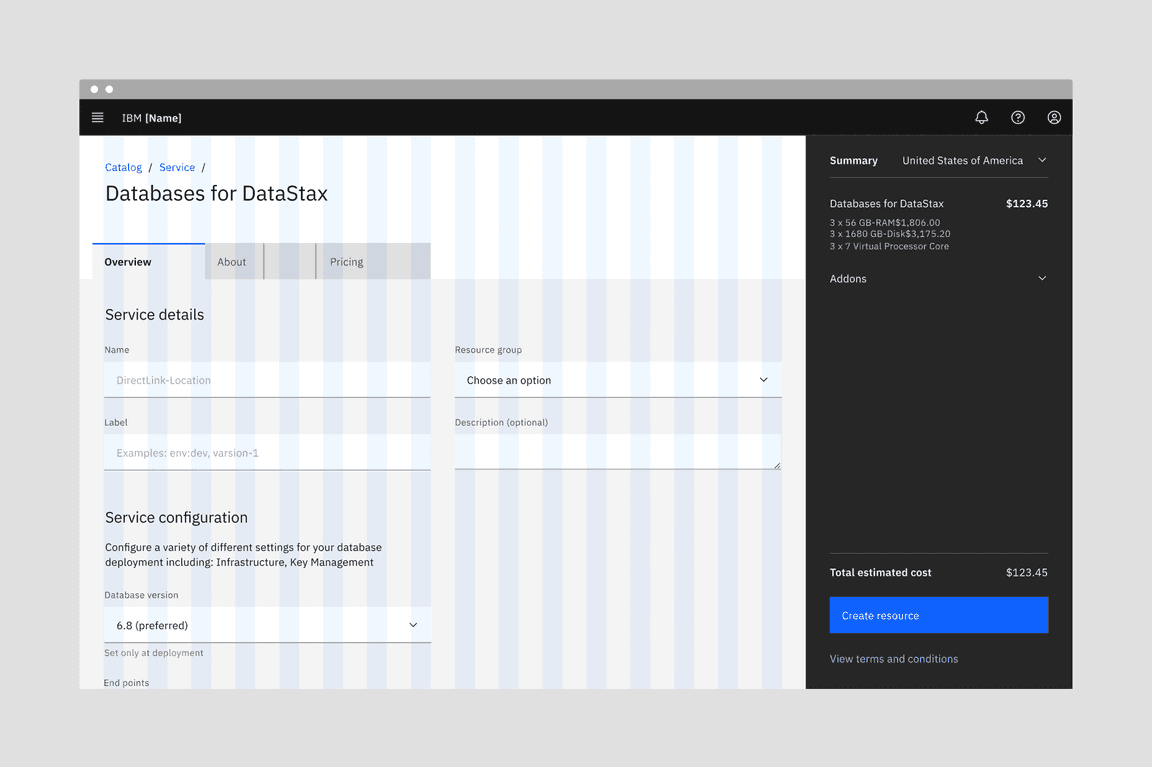

Example of contained tabs using the grid

Alignment within a component

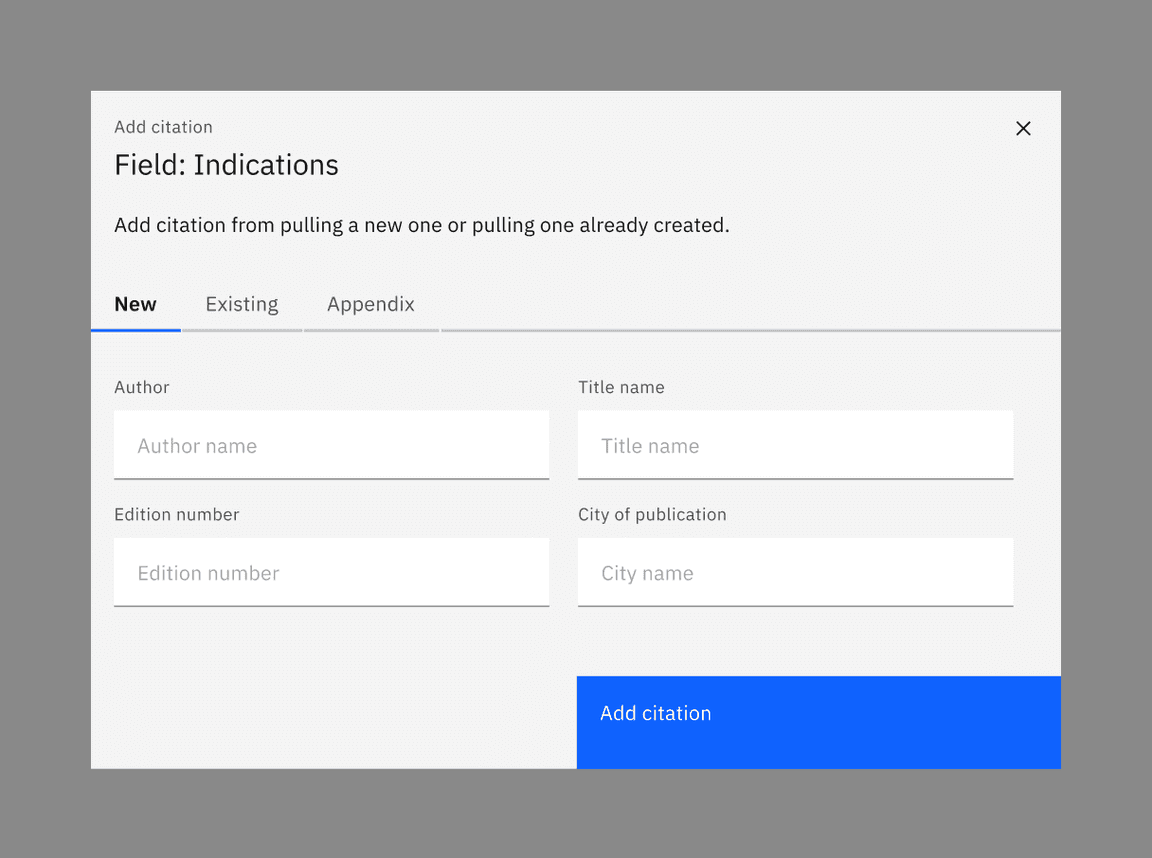

When using line tabs within a component (like a modal) the first label should always align to the other content in the space. Do not use contained tabs. The edges of the line tab may also bleed to the edges of the space if needed depending on the container’s margins. To add hierarchical clarity and balance the tabs with the other content, a line may be added from the end of the last tab to the edge of the content area.

Contained tabs within a component

Aligning tabs within a component

Content

Main elements

Labels

  • Use short tab labels that are clear and specific. Labels should be one to two words, as these are easier to scan.
  • Text labels should clearly communicate the view users will see and the content contained in the view.

Secondary labels

  • Contained tabs can have secondary labels to add clarity or assist the user in choosing the right selection.

Further guidance

For further content guidance, see Carbon’s content guidelines.

Behaviors

States

Tabs allow for three states: selected, unselected, and disabled. The default view is that one tab is preselected and is usually the first tab. Only one tab can be selected at a time. When a user chooses a new item, the previous tab is automatically deselected. If a user navigates away from a tab, a user should return to the last tab selected.

For detailed visual information about the various states for this component, see the Style tab.

Tab states

Example of selected, unselected, and disabled states in line tabs (top) and contained tabs (bottom)

Scrollable

When your page requires more tabs that can fit or needs to adapt to a new browser size, tabs should become scrollable. Left and right arrows appear to help navigate the user through tabs that might be off-page.

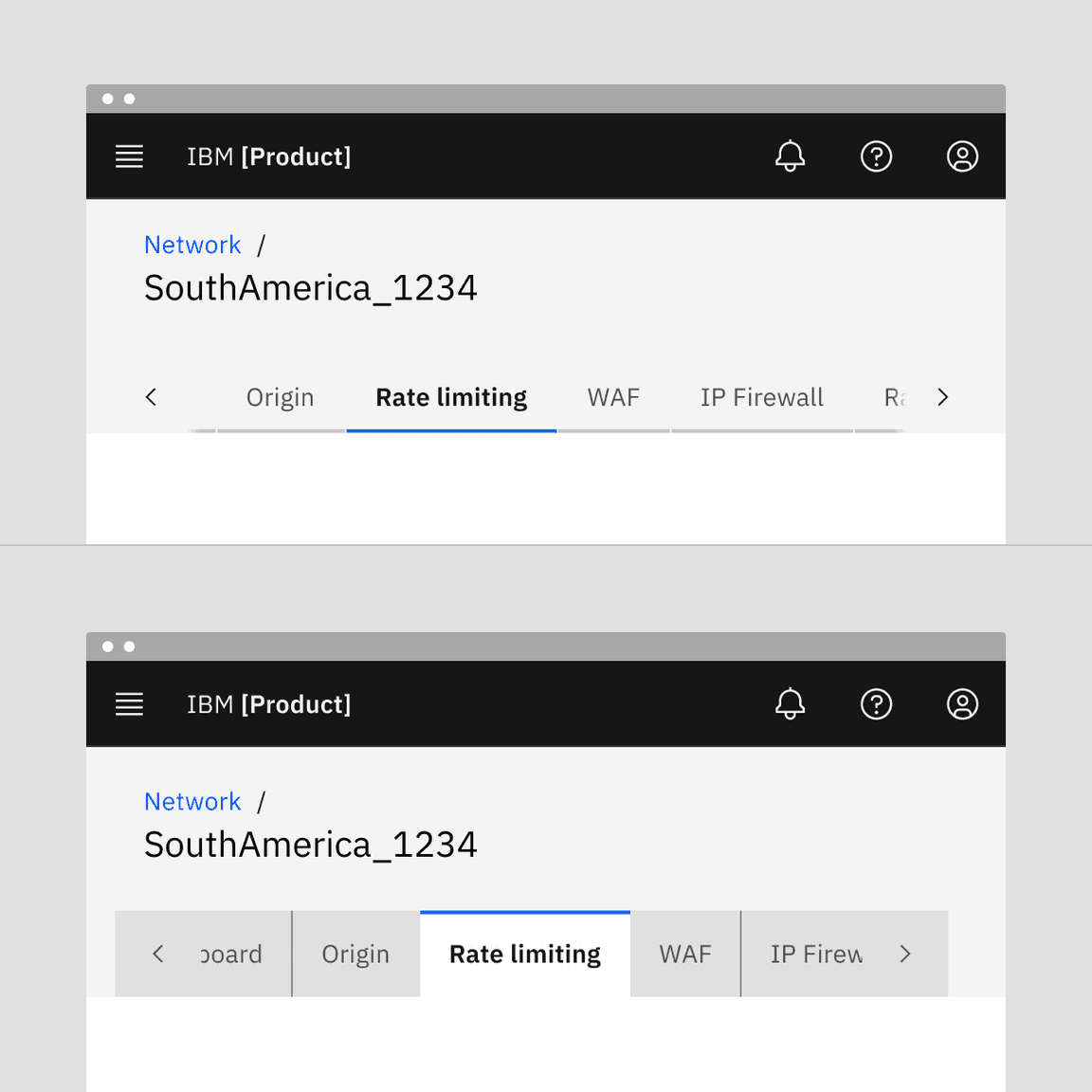

Scrollable tabs

Example of scrolling in line tabs (top) and contained tabs (bottom)

Interactions

Mouse

Users can trigger a state change by clicking anywhere in the container area.

Keyboard

One tab should be selected by default. Users can navigate between tabs by pressing right or left arrow keys. For additional keyboard interactions, see the Accessibility tab.

Screenreader

VoiceOver: Users can navigate between tabs by pressing right or left arrow keys.

JAWS: Users can navigate between tabs by pressing right or left arrow keys.

NVDA: Users can navigate between tabs by pressing right or left arrow keys.

For additional information, see the Accessibility tab.

Modifiers

Tabs with icons

You may use icons in either line or contained tabs. Icons are always pinned to the right of the tab and do not appear above, below, or to the left of the label.

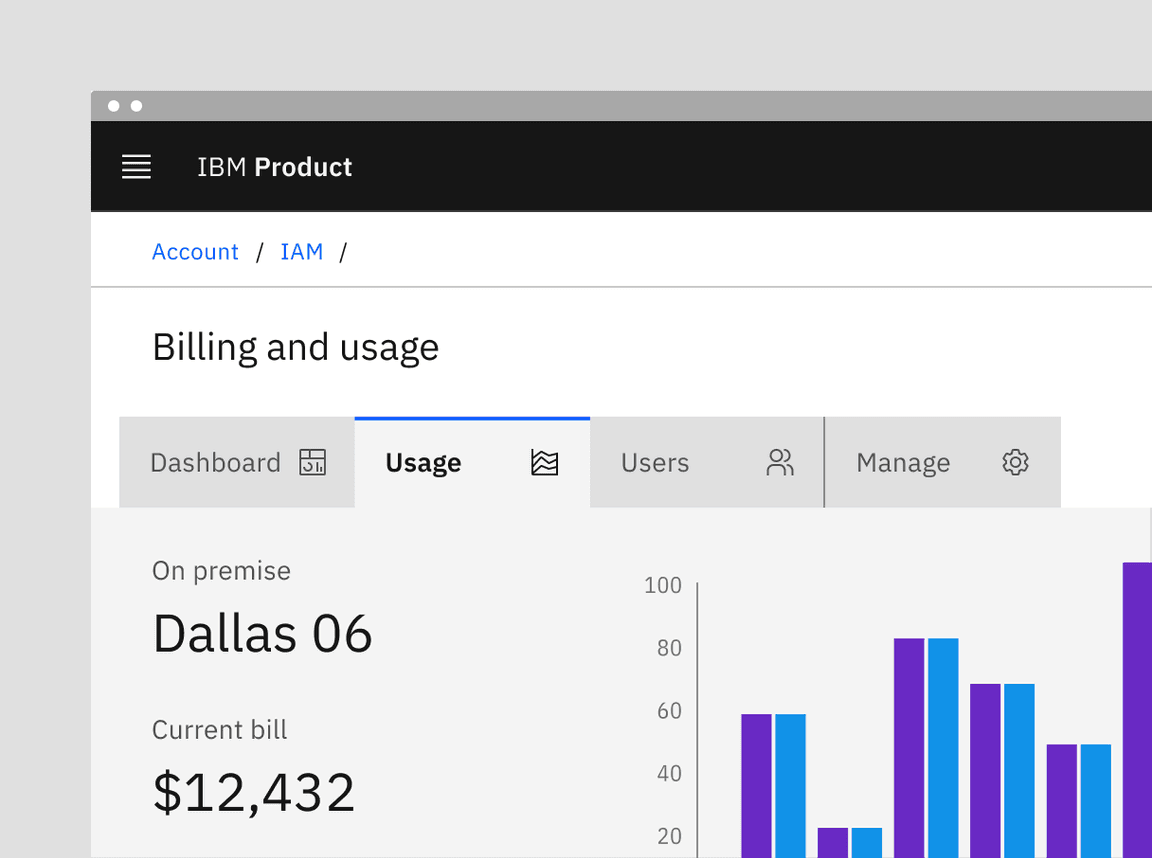

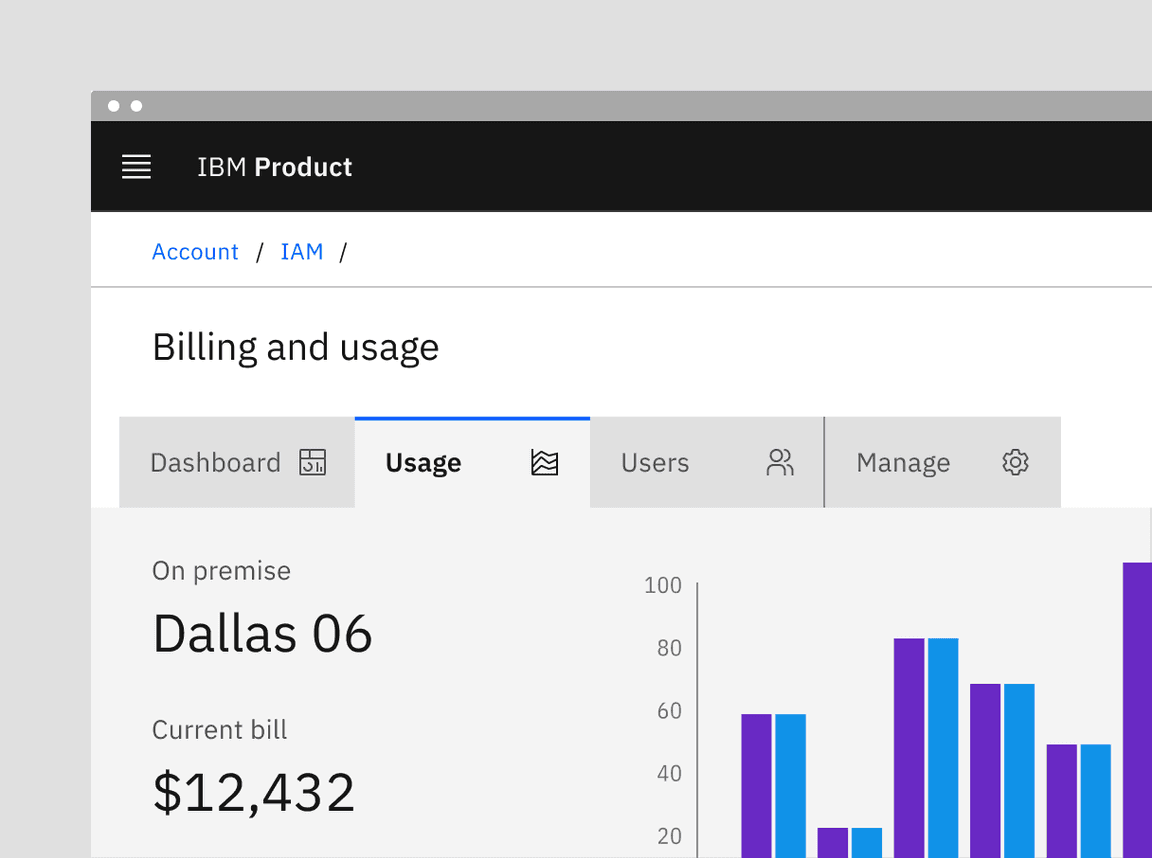

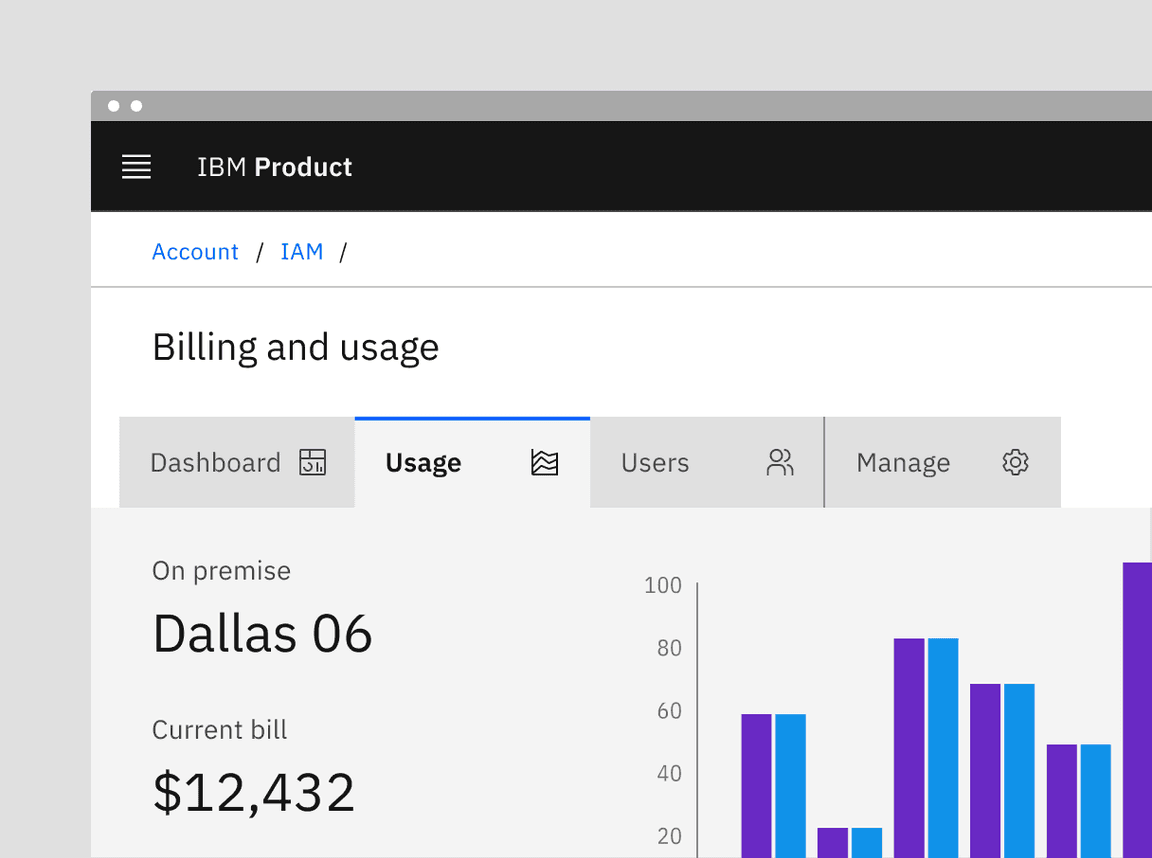

Examples of tabs with icons

Note: Tabs with an icon is an example of a pattern. It is not currently implemented by default in the component, it is instead enabled through the composable component API. This requires additional styling and configuration.

Icon-only tabs

You may use icon-only tabs with both line and contained tabs. Icons must be easily recognized and globally accepted. These work best in small, defined spaces and in components. Always use a tooltip for an icon description on hover to add clarity.

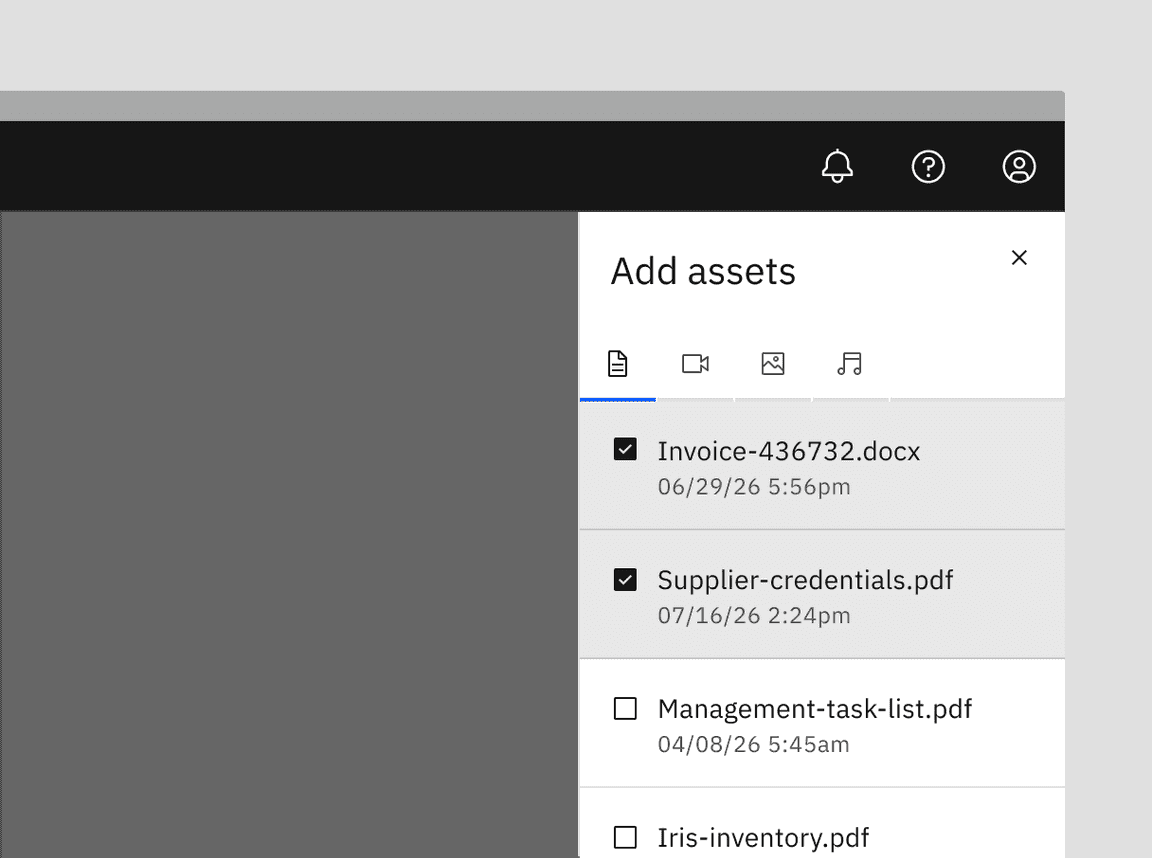

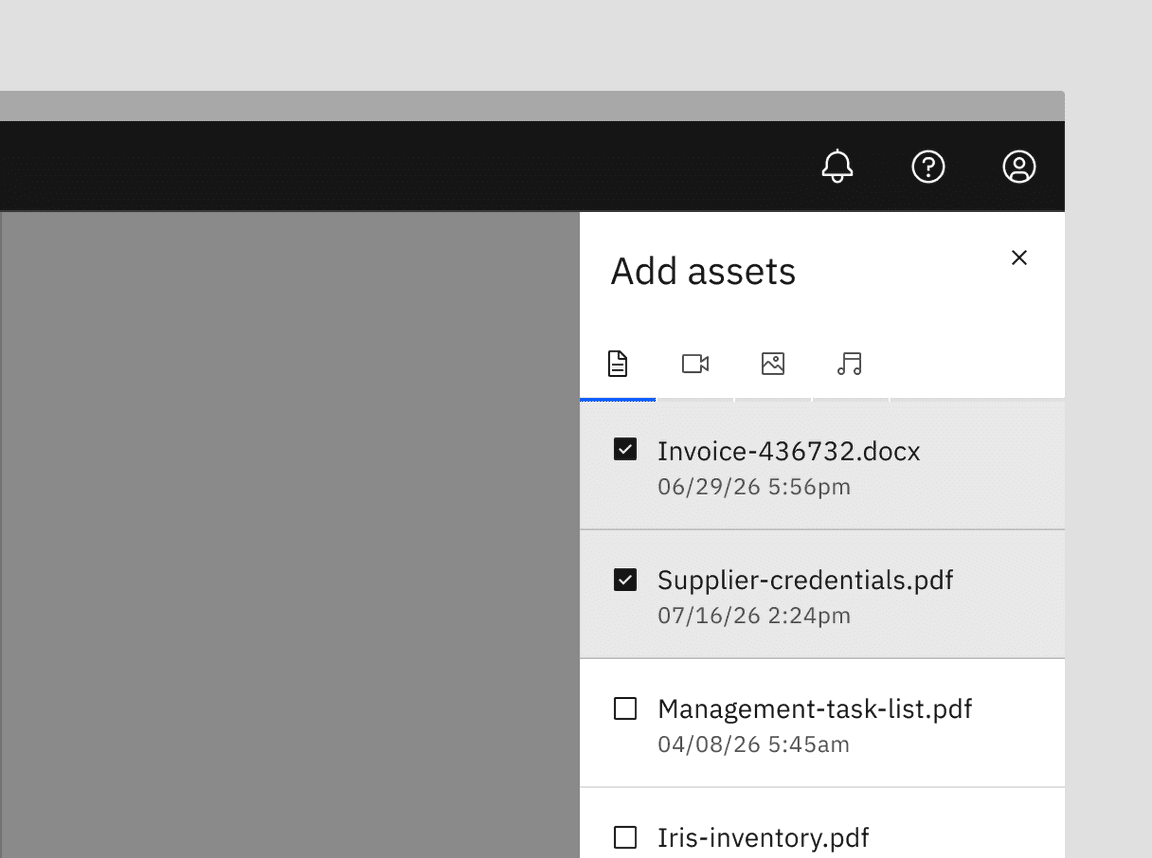

Example of icon-only tabs within a side panel

Secondary labels

Contained tabs that align with the grid allow for a secondary label. Do not use secondary labels with line tabs or auto-width contained tabs.

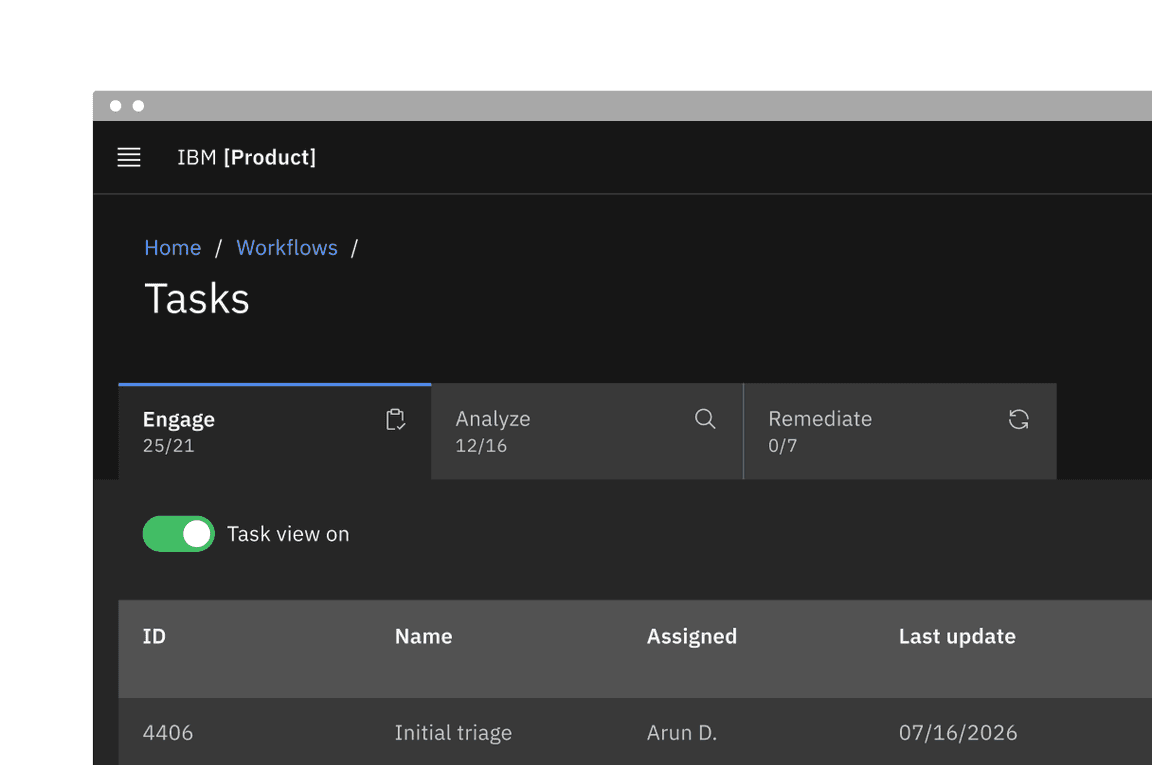

Example of tabs with a secondary label

Note: The secondary label is an example of a pattern. It is not currently implemented in the component.

Content switcher versus tabs
